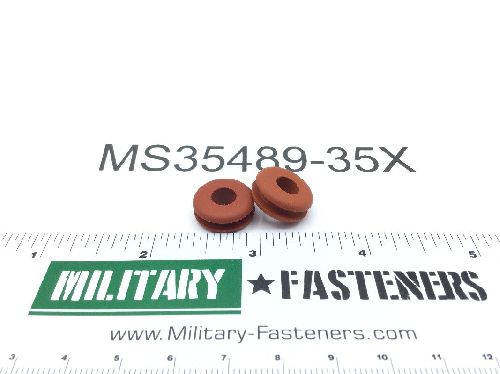

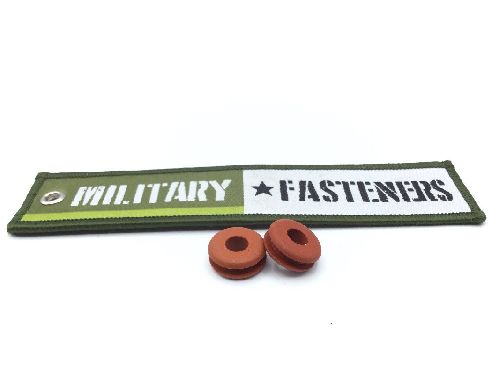

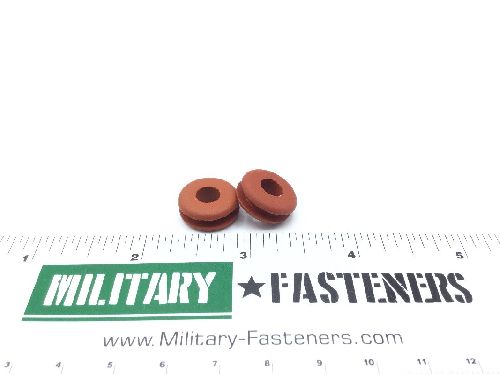

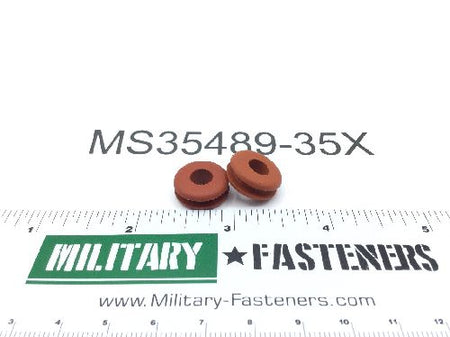

MS35489-35X Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 4016.93.0000

Price per Unit $2.50

Units per Pack 25

Price per Pack $62.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $62.50

Add item to quote

Color: Black
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: Between 0.046 inches and 0.078 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: Between 0.422 inches and 0.454 inches
Groove Width: Between 0.109 inches and 0.141 inches
Iii Material: Rubber synthetic
Large Flange Outside Diameter: Between 0.594 inches and 0.656 inches
Material Specification: Astm d2000 bg515a14b24c32e036f19z assn standard single material response
Overall Height: Between 0.094 inches and 0.156 inches
Hole Diameter: Between 0.234 inches and 0.266 inches
