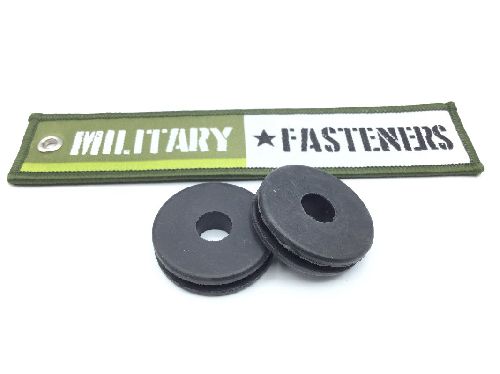

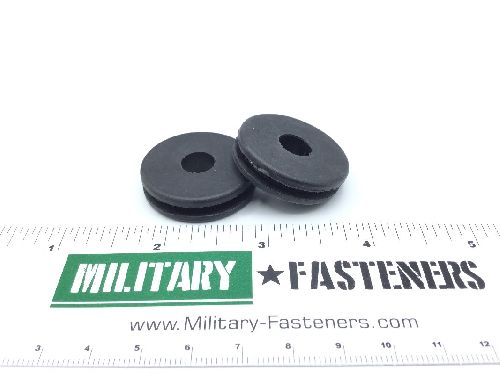

MS35489-41 Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 4016.93.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Rubber synthetic

Color: Black
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: 0.093 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: Between 0.984 inches and 1.016 inches
Groove Width: Between 0.109 inches and 0.141 inches
Large Flange Outside Diameter: 1.250 inches
Material Specification: Astm d2000 bg515a14b24c2e036f19z assn standard single material response
Overall Height: Between 0.281 inches and 0.343 inches
Hole Diameter: Between 0.359 inches and 0.391 inches
