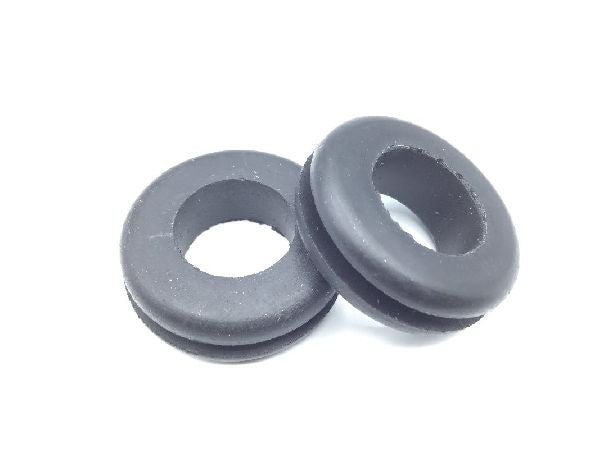

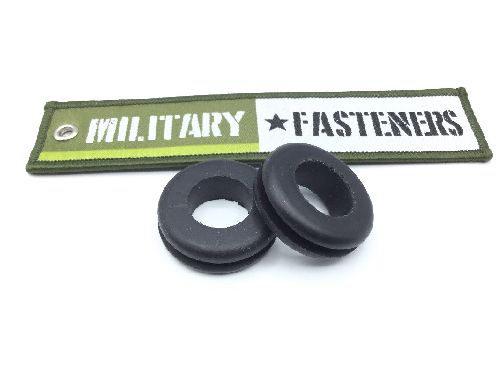

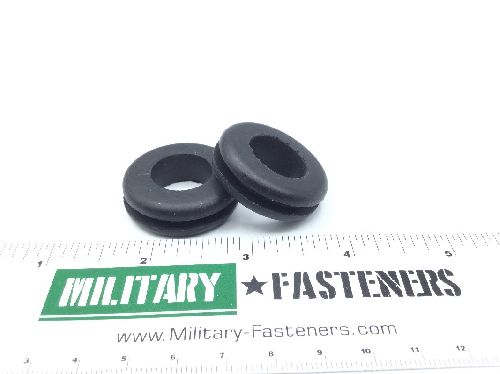

MS35489-48 Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 4016.93.0000

Price per Unit $2.19

Units per Pack 20

Price per Pack $43.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $43.80

Add item to quote

Color: Black
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: Between 0.140 inches and 0.172 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: Between 0.984 inches and 1.016 inches
Groove Width: Between 0.109 inches and 0.141 inches
Iii Material: Rubber synthetic
Large Flange Outside Diameter: Between 1.281 inches and 1.343 inches
Material Specification: Astmd2000bg515a14b24c32e036f19z assn standard single material response
Overall Height: Between 0.409 inches and 0.469 inches
Hole Diameter: Between 0.672 inches and 0.704 inches
