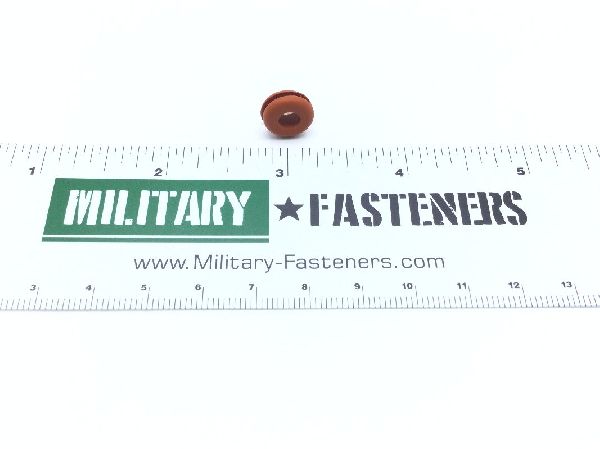

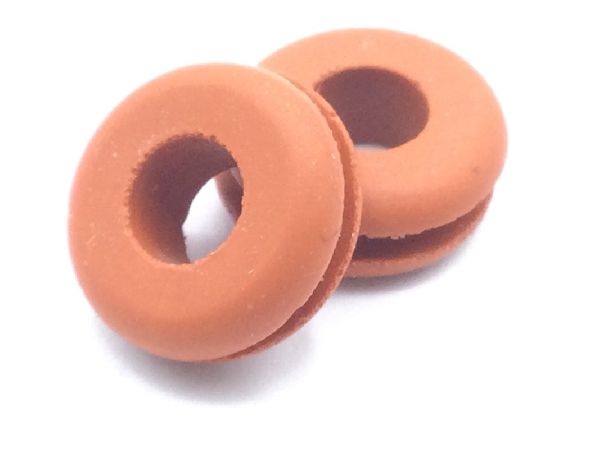

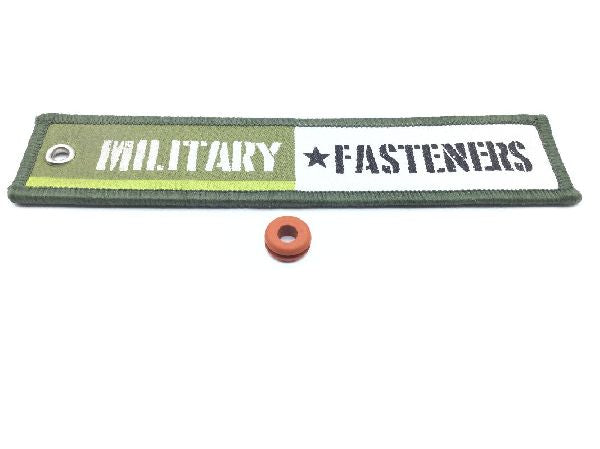

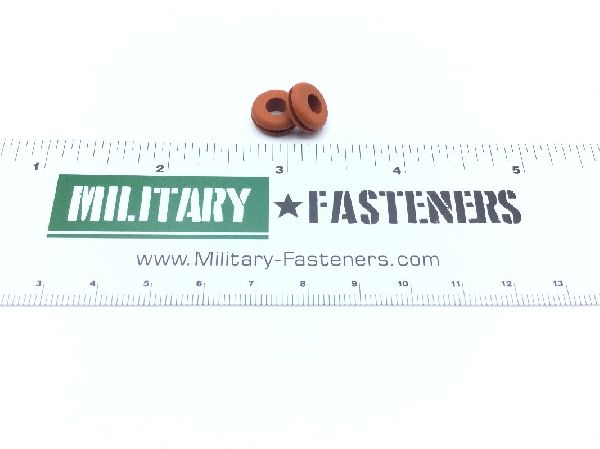

MS35489-4X Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Color: Black
Criticality Code Justification: Zzzw and feat
Departure From Cited Document: As modified by material which must conform to ships parts control center special quality control provisions
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: Between 0.046 inches and 0.078 inches
Grommet Construction Type: Split
Grommet Style: Round
Groove Outside Diameter: Between 0.296 inches and 0.328 inches
Groove Width: Between 0.046 inches and 0.078 inches
Iii Material: Rubber synthetic
Large Flange Outside Diameter: Between 0.407 inches and 0.469 inches
Material Specification: Ge assn standard single material response fe type fc astm d2000
Overall Height: Between 0.157 inches and 0.219 inches
Special Features: Certified free from mercury contamination
Special Test Features: Special quality control testing
Test Data Document: Etc.).
Hole Diameter: Between 0.172 inches and 0.204 inches
