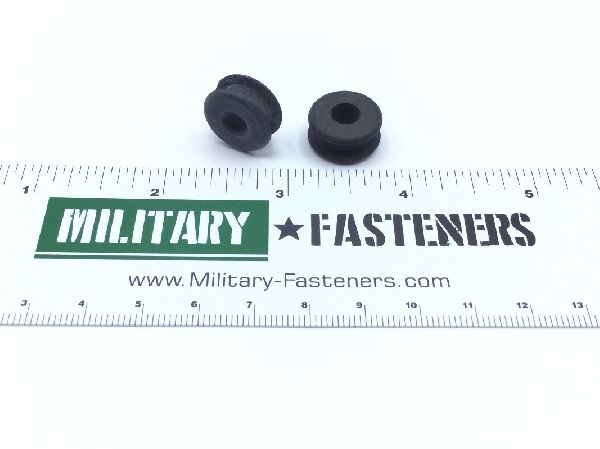

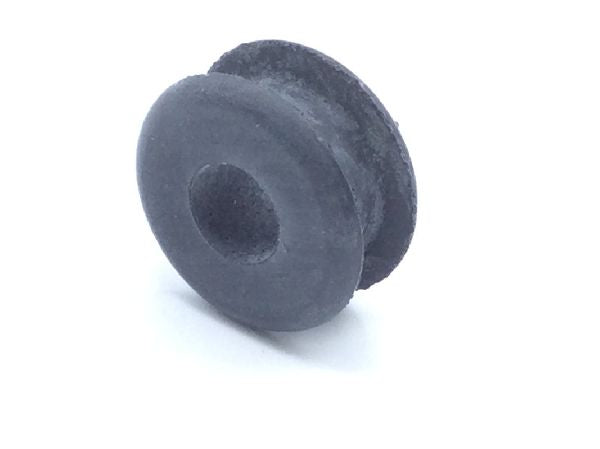

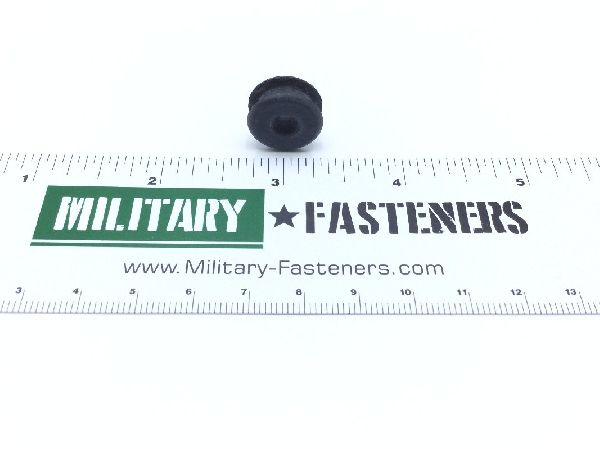

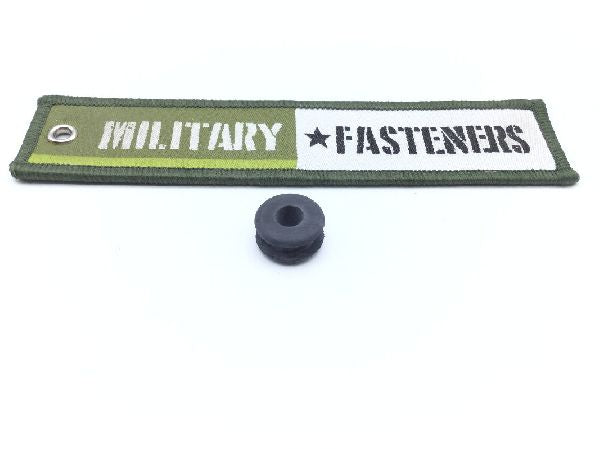

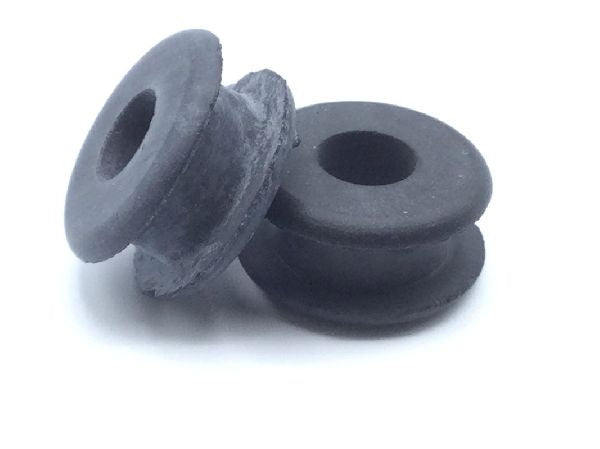

MS35489-64 Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Color: Black
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: Between 0.046 inches and 0.078 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: Between 0.422 inches and 0.454 inches
Groove Width: Between 0.172 inches and 0.204 inches
Iii Material: Rubber synthetic
Large Flange Outside Diameter: Between 0.594 inches and 0.656 inches
Material Specification: Stm d2000 bg515a14b24c32e036f19z assn standard single material response
Overall Height: Between 0.281 inches and 0.343 inches
Hole Diameter: Between 0.234 inches and 0.266 inches
