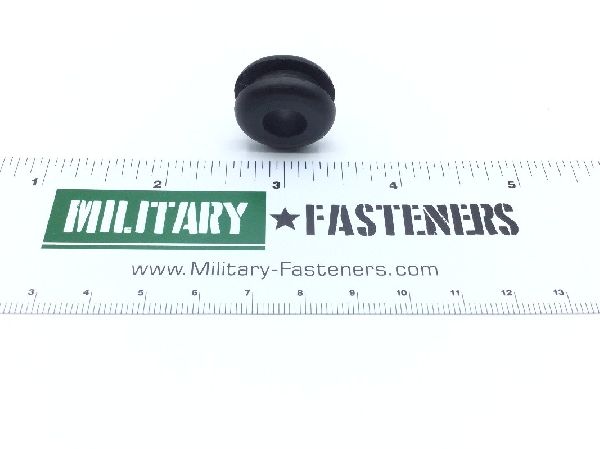

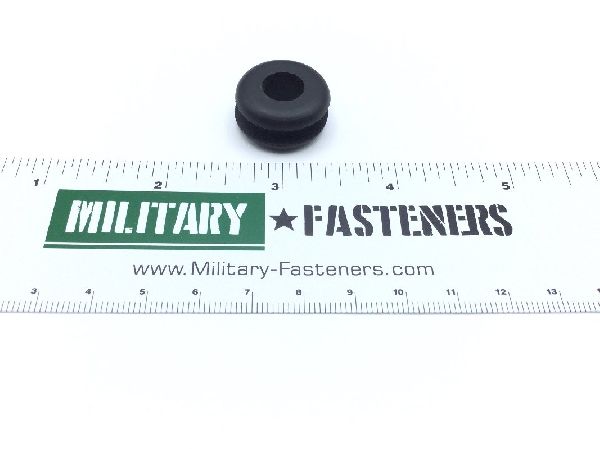

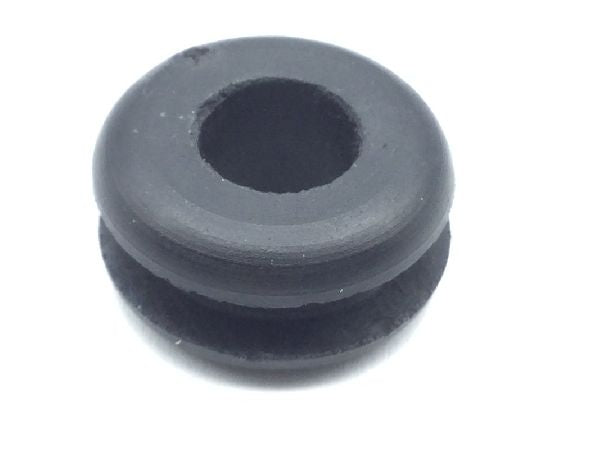

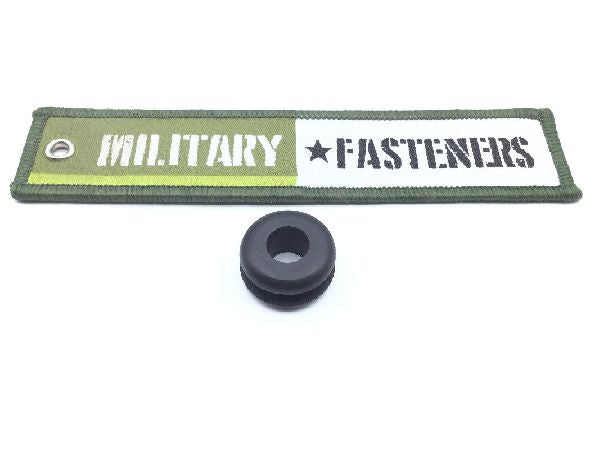

MS35489-69 Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $1.66

Units per Pack 25

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Material

Rubber synthetic

Color: Black
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: Between 0.109 inches and 0.141 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: Between 0.609 inches and 0.641 inches
Groove Width: Between 0.172 inches and 0.204 inches
Large Flange Outside Diameter: Between 0.844 inches and 0.906 inches
Material Specification: Astm d2000 bg515a14b24c32e036f19z assn standard single material response
Overall Height: Between 0.407 inches and 0.469 inches
Hole Diameter: Between 0.359 inches and 0.391 inches
