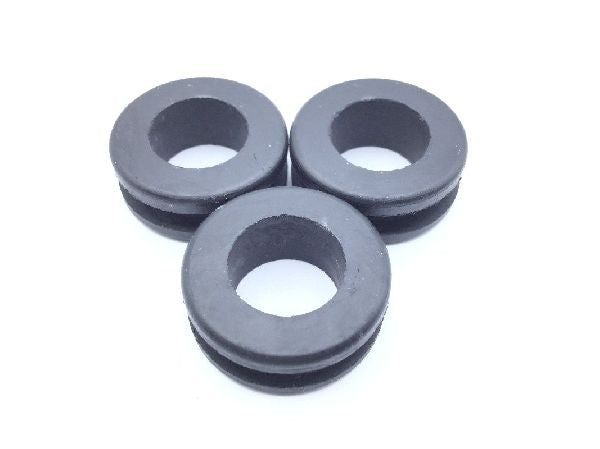

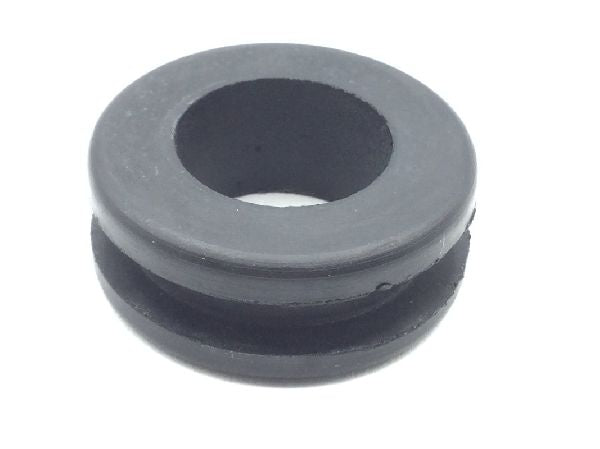

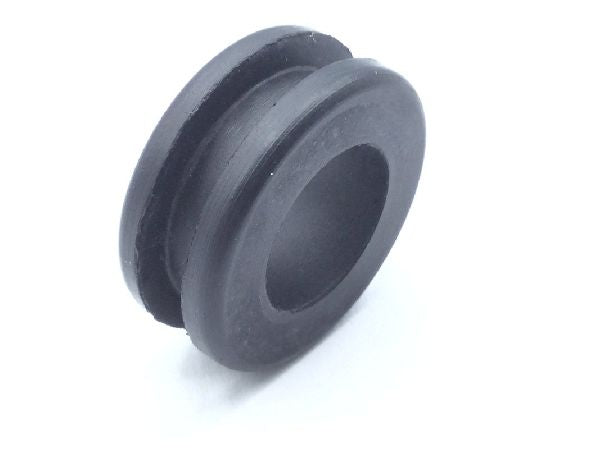

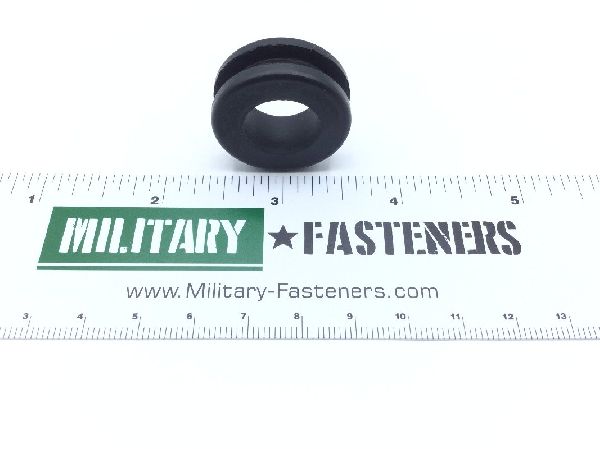

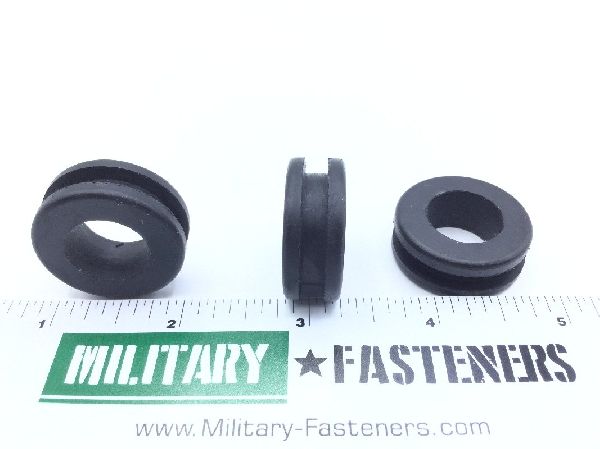

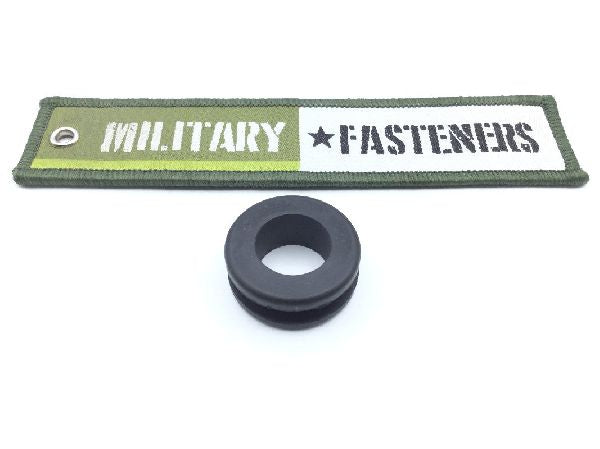

MS35489-75 Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 4016.93.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Color: Black
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: Between 0.109 inches and 0.141 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: Between 0.859 inches and 0.891 inches
Groove Width: Between 0.171 inches and 0.203 inches
Iii Material: Rubber synthetic
Large Flange Outside Diameter: Between 1.094 inches and 1.156 inches
Material Specification: Astm d2000 bg515a14b24c32e036f19z assn standard single material response
Overall Height: Between 0.406 inches and 0.468 inches
Hole Diameter: Between 0.609 inches and 0.641 inches
