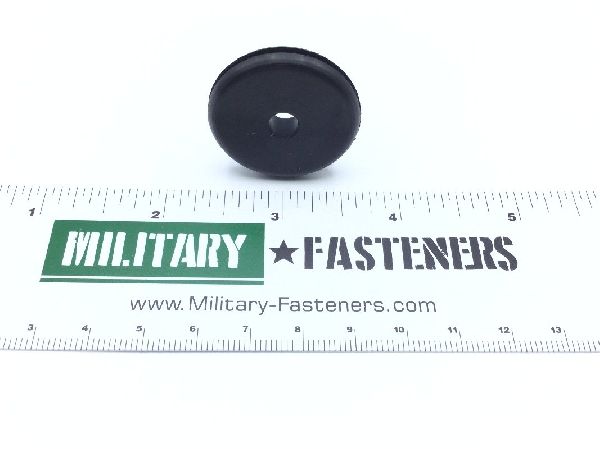

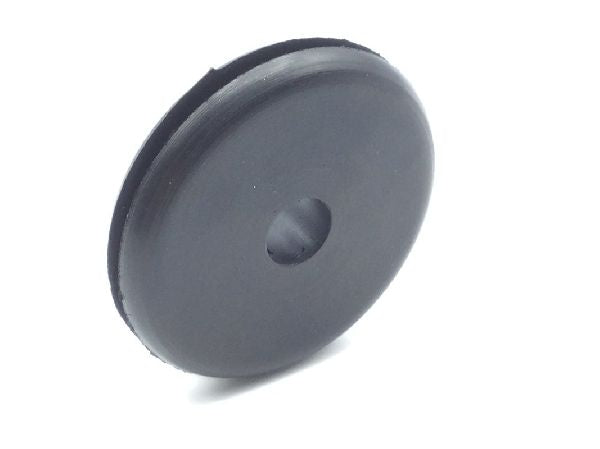

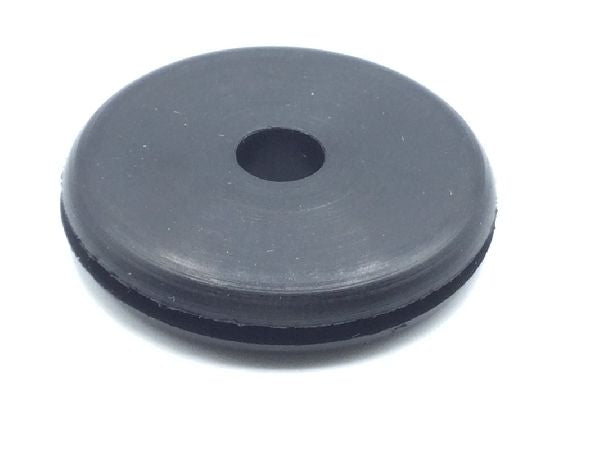

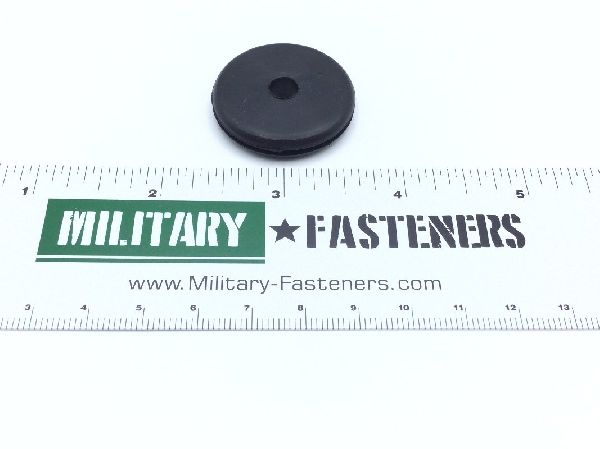

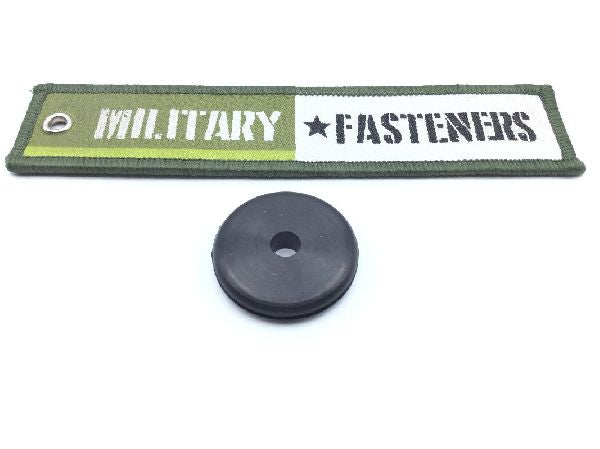

MS35489-8 Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 7326.90.8695

Price per Unit $1.73

Units per Pack 20

Price per Pack $34.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $34.60

Add item to quote

Color: Black
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: Between 0.063 inches and 0.125 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: Between 0.984 inches and 1.016 inches
Groove Width: Between 0.046 inches and 0.078 inches
Iii Material: Rubber synthetic
Large Flange Outside Diameter: Between 1.219 inches and 1.281 inches
Material Specification: Astm d2000 bg515a14b24c32e036f19z assn standard single material response
Nonmetallic Hardness Rating: 45.0 shore durometer a and 55.0 shore durometer a
Overall Height: Between 0.234 inches and 0.266 inches
Hole Diameter: Between 0.234 inches and 0.266 inches
