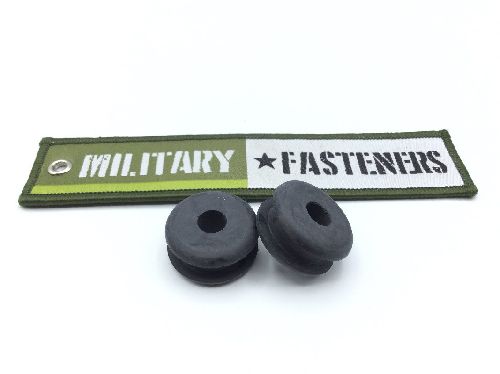

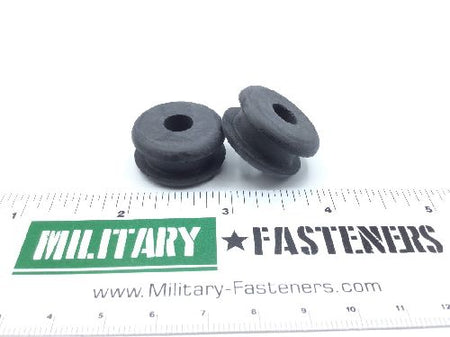

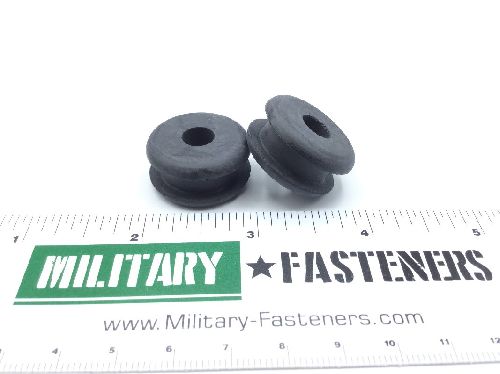

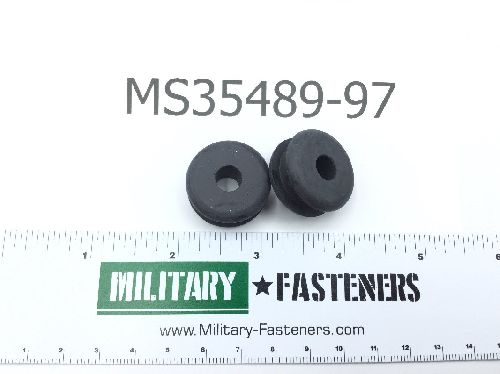

MS35489-97 Nonmetallic Grommet

Product Series: MS
ECCN: EAR99
Schedule: 4016.93.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Color: Any acceptable
Features: Coolant resistant and oil resistant
Features Provided: Coolant resistant and oil resistant
Flange Thickness: Between 0.109 inches and 0.141 inches
Grommet Construction Type: Solid
Grommet Style: Round
Groove Outside Diameter: Between 0.734 inches and 0.766 inches
Groove Width: Between 0.234 inches and 0.266 inches
Iii Material: Rubber synthetic
Large Flange Outside Diameter: Between 0.969 inches and 1.031 inches
Overall Height: Between 0.469 inches and 0.531 inches
Hole Diameter: Between 0.296 inches and 0.328 inches
