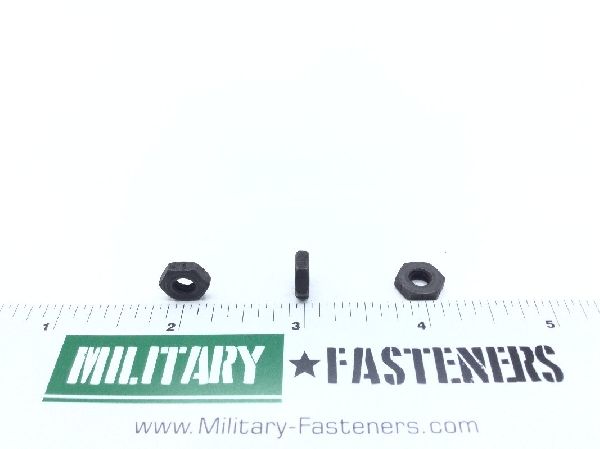

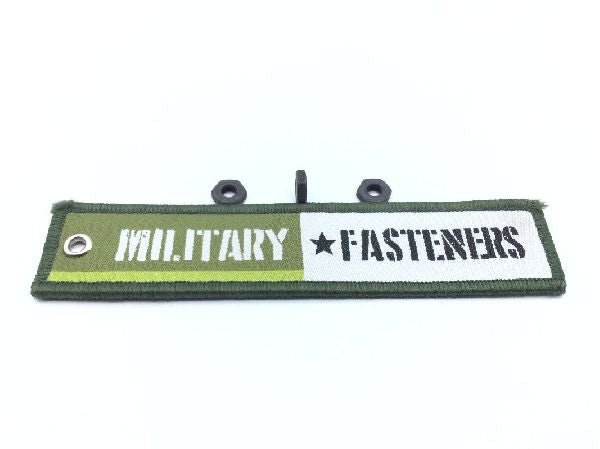

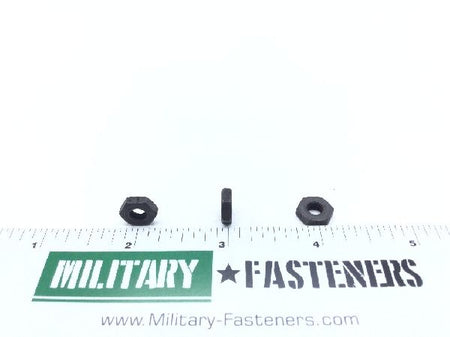

MS35649-205B Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $1.31

Units per Pack 25

Price per Pack $32.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $32.75

Add item to quote

Material

Copper alloy 462 or copper alloy 464 or copper alloy 360

Surface Treatment

Mil-f-495 military specification single treatment response

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.190 inches

Bearing Surface Type: Chamfered
Material Specification: Alloy 360 federal specification 3rd material response alloy 464 federal specification 2nd material response or qq-b-626 alloy 462 federal specification 1st material response or qq-b-637 qq-b-637
Nondefinitive Specification/std Data: 2 type and 13 style
Nut Height: Between 0.117 inches and 0.130 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.362 inches and 0.375 inches
