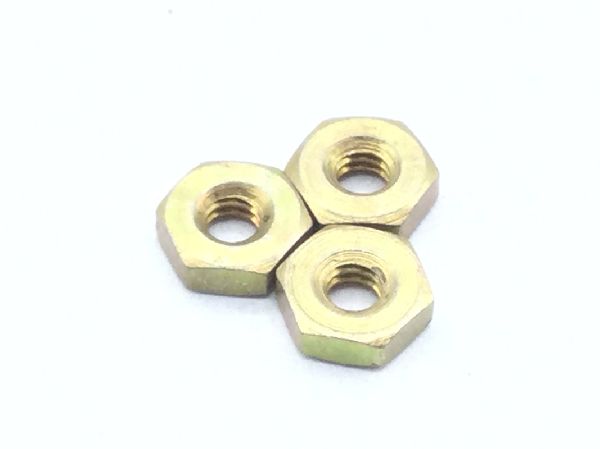

MS35649-222 Plain Hexagon Nut
MS35649-222 Plain Hexagon Nut (2)

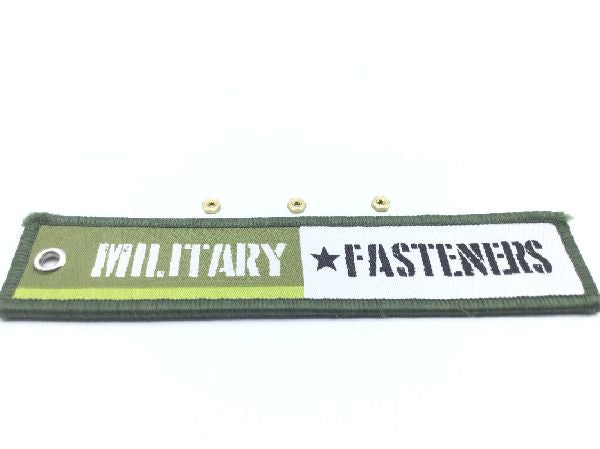

MS35649-222 Plain Hexagon Nut (3)

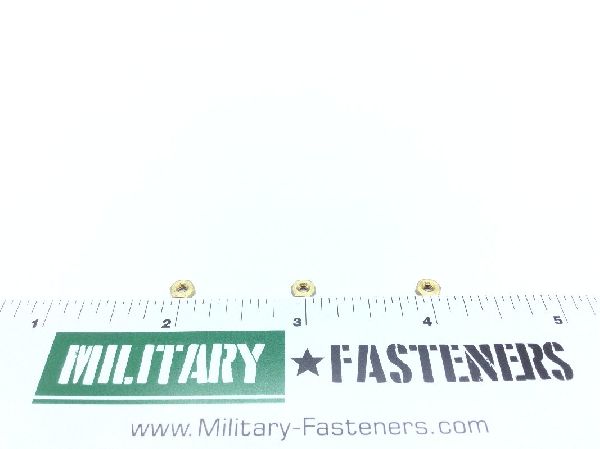

MS35649-222 Plain Hexagon Nut (4)
MS35649-222 Plain Hexagon Nut
MS35649-222 Plain Hexagon Nut (2)
MS35649-222 Plain Hexagon Nut (3)
MS35649-222 Plain Hexagon Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS35649-222 Plain Hexagon Nut

Product Series
MS
ECCN
EAR99
Schedule
7318.16.0085
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Surface Treatment
Cl 3 federal specification single treatment response type 2 qq-p-416
Thread Class
2b
Thread Series
Unc (coarse thread)
Thread Size
0.086 inches
Nondefinitive Specification/std Data
2 type and 13 style
Nut Height
Between 0.057 inches and 0.066 inches
Nut Style
Hexagon
Surface Type
Chamfered
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
56
Width Across Flats
Between 0.180 inches and 0.187 inches
