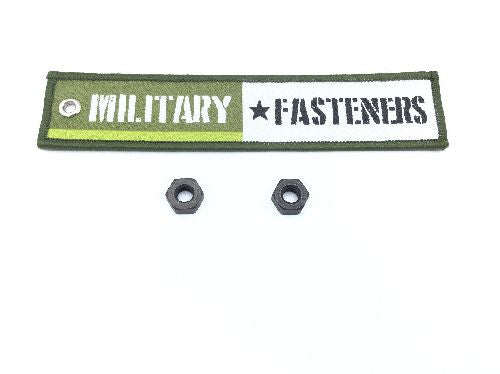

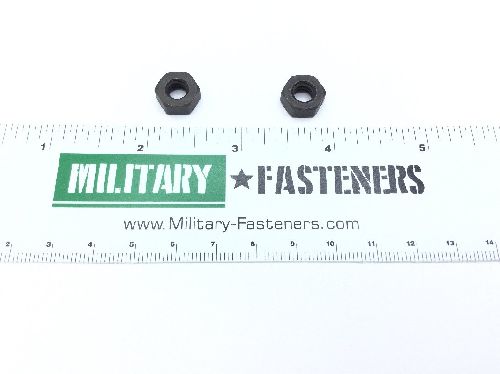

MS35649-2254B Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $6.24

Units per Pack 10

Price per Pack $62.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $62.40

Add item to quote

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 317 or steel comp 347

Surface Treatment

Class 4 military specification single treatment response mil-c-13924

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.250 inches

Bearing Surface Type: Chamfered
Nondefinitive Specification/std Data: 2 type and 13 style
Nut Height: Between 0.178 inches and 0.193 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.423 inches and 0.437 inches
