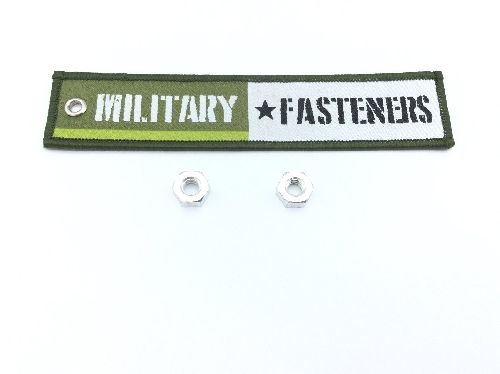

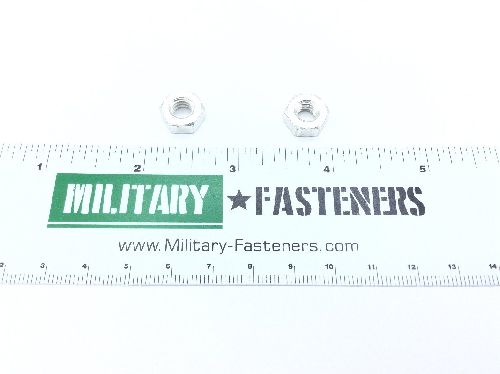

MS35649-2255T Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Copper alloy

Surface Treatment

Mil-t-10727 military specification single treatment response

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.250 inches

Material Specification: Qq-b-637 federal specification 1st material response or qq-b-637 federal specification 2nd material response or qq-b-626 federal specification 3rd material response
Nondefinitive Specification/std Data: 2 type and 13 style
Nut Height: Between 0.178 inches and 0.193 inches
Nut Style: Hexagon
Surface Type: Chamfered
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.423 inches and 0.437 inches
