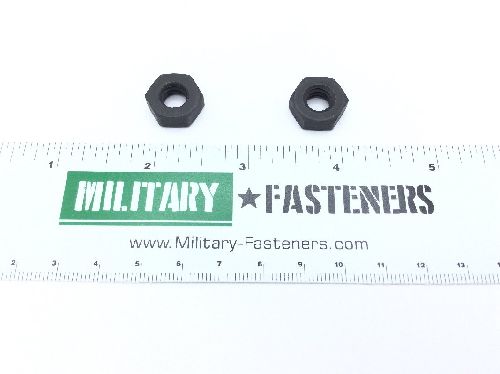

MS35649-2314B Plain Hexagon Nut

MS35649-2314B Plain Hexagon Nut (2)

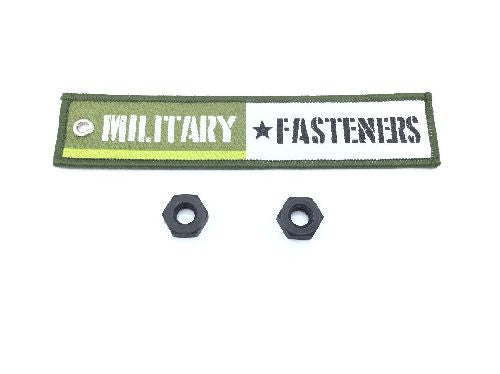

MS35649-2314B Plain Hexagon Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS35649-2314B Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 317 or steel comp 347

Surface Treatment

Class 4 military specification single treatment response mil-c-13924

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.312 inches

Bearing Surface Type: Chamfered
Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: 2st13 type
Nut Height: Between 0.208 inches and 0.225 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.545 inches and 0.562 inches
