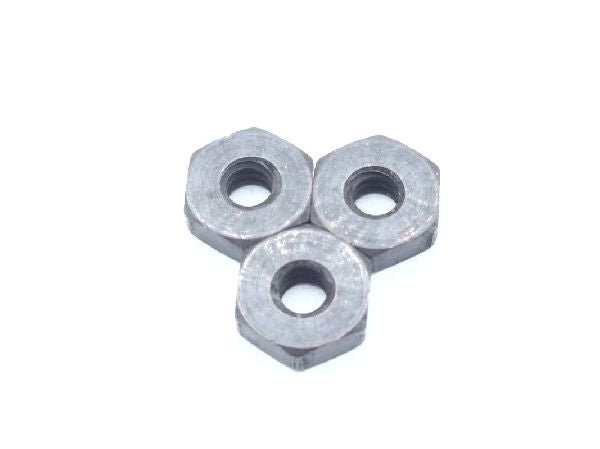

MS35649-265B Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $0.83

Units per Pack 50

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Material

Copper alloy 462 or copper alloy 464 or copper alloy 360

Surface Treatment

Mil-f-495 military specification single treatment response

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.138 inches

Bearing Surface Type: Chamfered
Material Specification: Qq-b-637 federal specification 1st material response or qq-b-637 federal specification 2nd material response or qq-b-626 federal specification 3rd material response
Nondefinitive Specification/std Data: 2 type and 13 style
Nut Height: Between 0.102 inches and 0.114 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.302 inches and 0.312 inches
