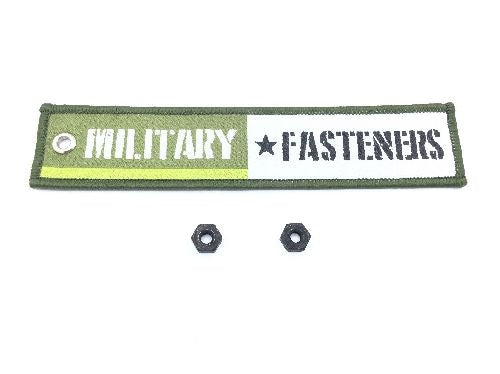

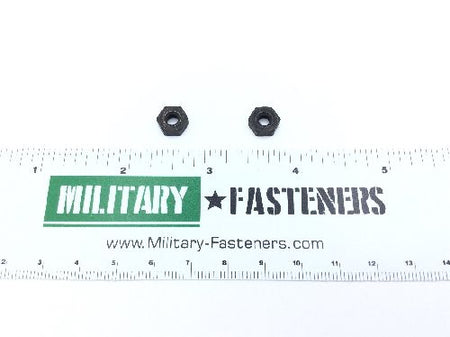

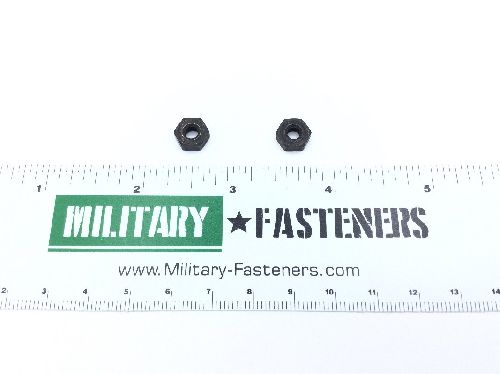

MS35649-284B Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 301 or steel comp 302 or steel comp 303 or steel comp 303se or steel comp 304 or steel comp 304l or steel comp 305 or steel comp 308 or steel comp 309s or steel comp 310 or steel comp 310s or steel comp 314 or steel comp 316

Surface Treatment

Cl 4 military specification single treatment response mil-c-13924

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.164 inches

Bearing Surface Type: Chamfered
Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: 2 type and 13 style
Nut Height: Between 0.117 inches and 0.130 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.332 inches and 0.344 inches
