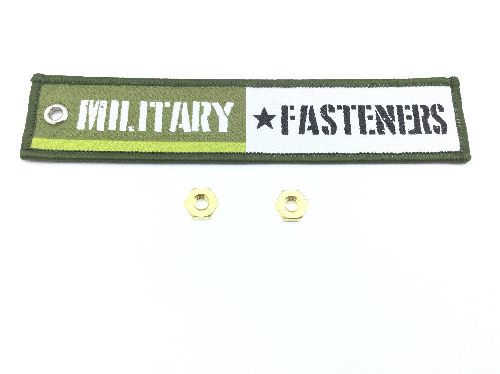

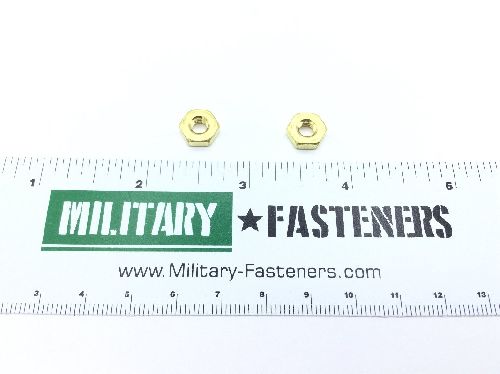

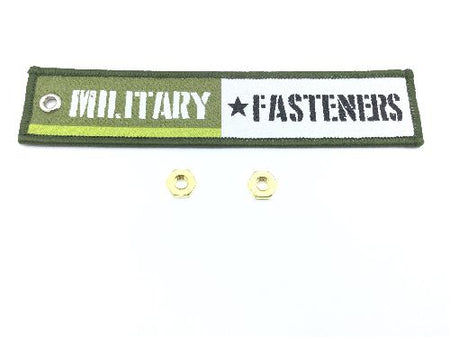

MS35650-305 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Copper

Surface Treatment

Mil-f-495 military specification single treatment response

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.19 inches

Bearing Surface Type: Chamfered
Material Specification: Comp 4 federal specification 2nd material response c0mp 1 federal specification 1st material response or qq-b-637 qq-b-637
Nut Height: Between 0.117 inches and 0.130 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.362 inches and 0.375 inches
