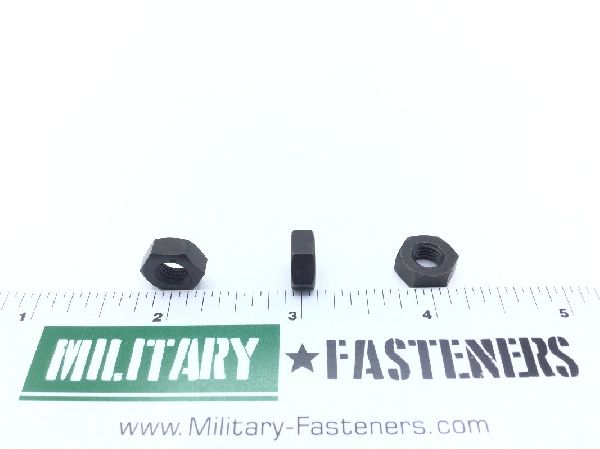

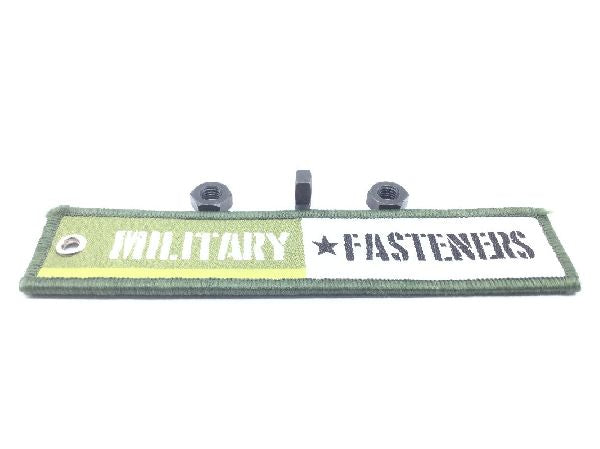

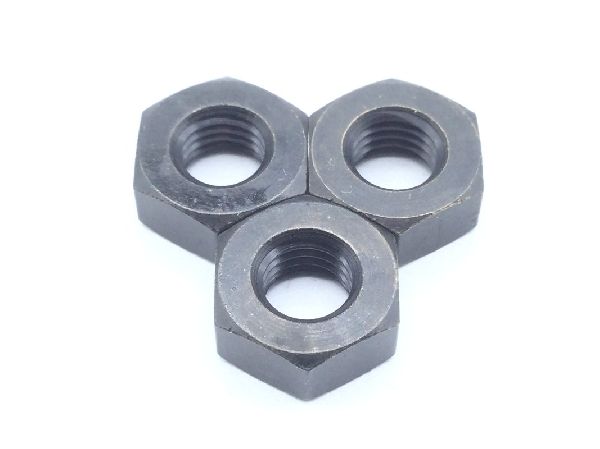

MS35650-3255B Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $2.85

Units per Pack 20

Price per Pack $57.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $57.00

Add item to quote

Material

Copper alloy 360 or copper alloy 462 or copper alloy 464

Surface Treatment

Mil-f-495 military specification single treatment response

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.250 inches

Bearing Surface Type: Chamfered
Material Specification: Alloy 464 federal specification 3rd material response alloy 462 federal specification 2nd material response or qq-b-637 alloy 360 federal specification 1st material response or qq-b-637 qq-b-626
Nondefinitive Specification/std Data: 2 type and 13 style
Nut Height: Between 0.178 inches and 0.193 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.423 inches and 0.437 inches
