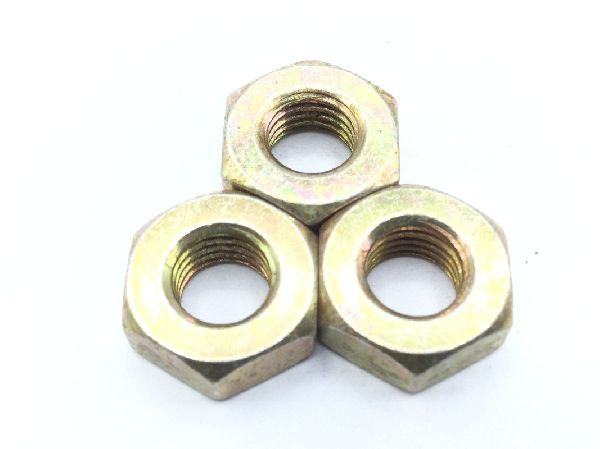

MS35650-3312 Plain Hexagon Nut

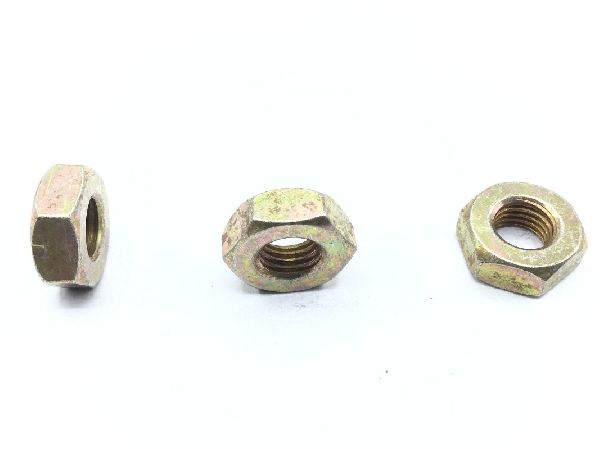

MS35650-3312 Plain Hexagon Nut (2)

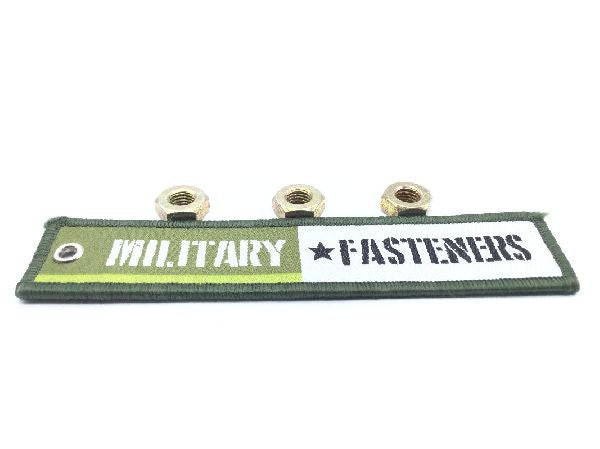

MS35650-3312 Plain Hexagon Nut (3)

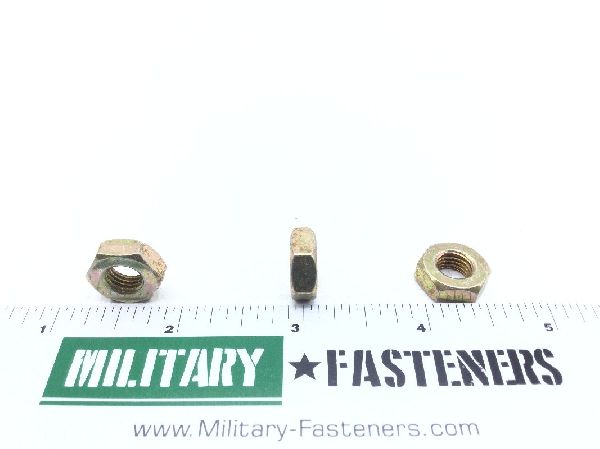

MS35650-3312 Plain Hexagon Nut (4)
MS35650-3312 Plain Hexagon Nut
MS35650-3312 Plain Hexagon Nut (2)
MS35650-3312 Plain Hexagon Nut (3)
MS35650-3312 Plain Hexagon Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS35650-3312 Plain Hexagon Nut

Product Series
MS
ECCN
EAR99
Schedule
7318.16.0000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Steel
Surface Treatment
Cl 3 federal specification single treatment response type 2 qq-p-416
Thread Class
2b
Thread Series
Unf (fine thread)
Thread Size
0.312 inches
Bearing Surface Type
Chamfered
Nondefinitive Specification/std Data
2 type and 10 style
Nut Height
Between 0.208 inches and 0.225 inches
Nut Style
Hexagon
Thread Direction
Right-hand
Thread Qty Per Inch (tpi)
24
Width Across Flats
Between 0.545 inches and 0.562 inches
