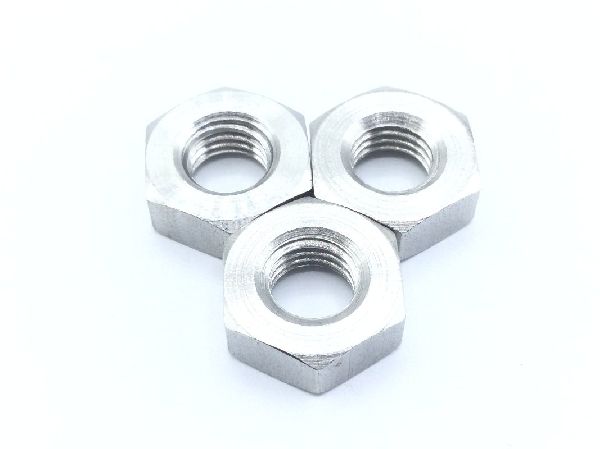

MS35650-3314 Plain Hexagon Nut

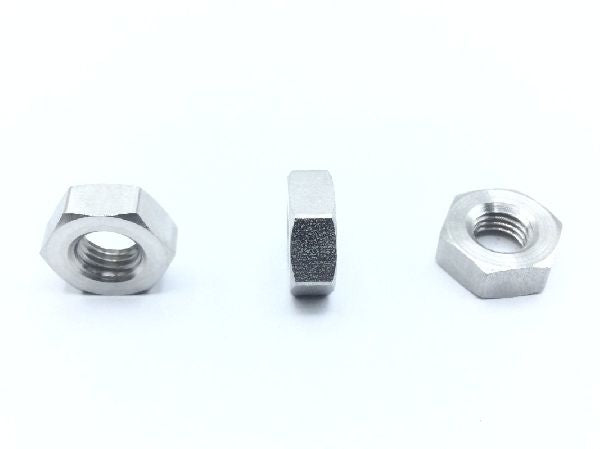

MS35650-3314 Plain Hexagon Nut (2)

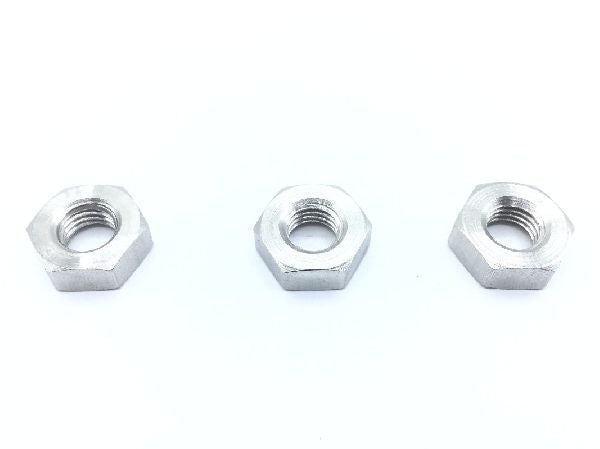

MS35650-3314 Plain Hexagon Nut (3)

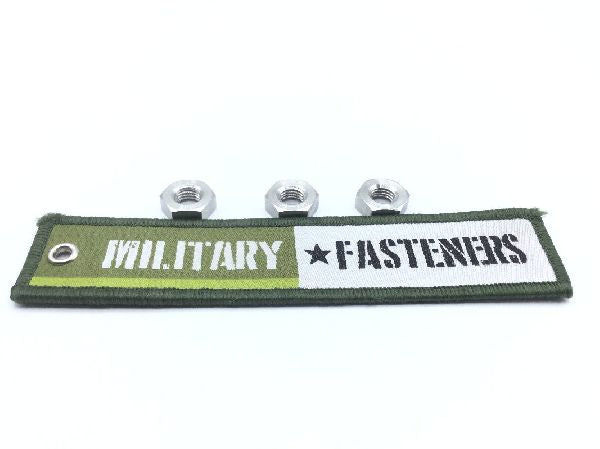

MS35650-3314 Plain Hexagon Nut (4)

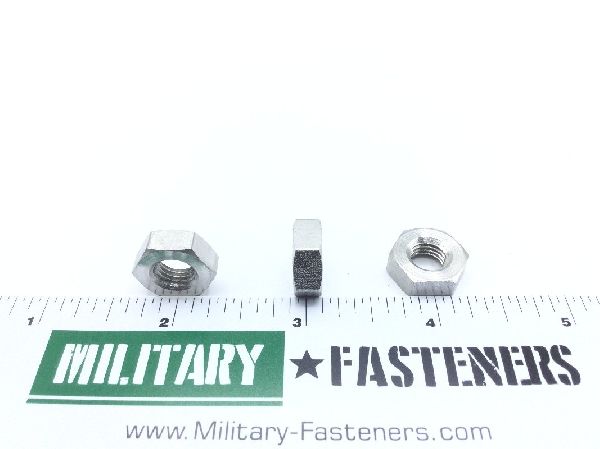

MS35650-3314 Plain Hexagon Nut (5)

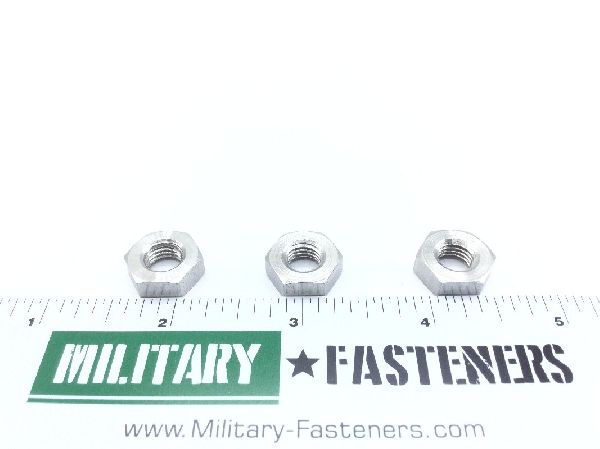

MS35650-3314 Plain Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS35650-3314 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $2.15

Units per Pack 20

Price per Pack $43.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $43.00

Add item to quote

Material

Steel comp 302 or steel comp 304 or steel comp 304l or steel comp 305 or steel comp 309 or steel comp 310 or steel comp 316 or steel comp 316l or steel comp 317 or steel comp 321 or steel comp 347

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.312 inches

Bearing Surface Type: Chamfered
Material Specification: Qq-s-763 federal specification all material responses
Nondefinitive Specification/std Data: 2 type and 13 style
Nut Height: Between 0.208 inches and 0.225 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.545 inches and 0.562 inches
