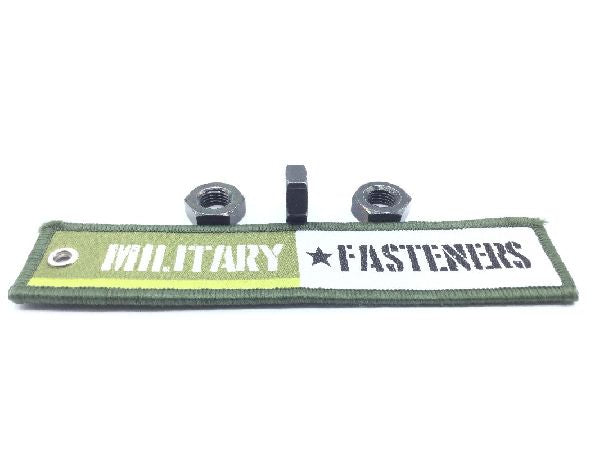

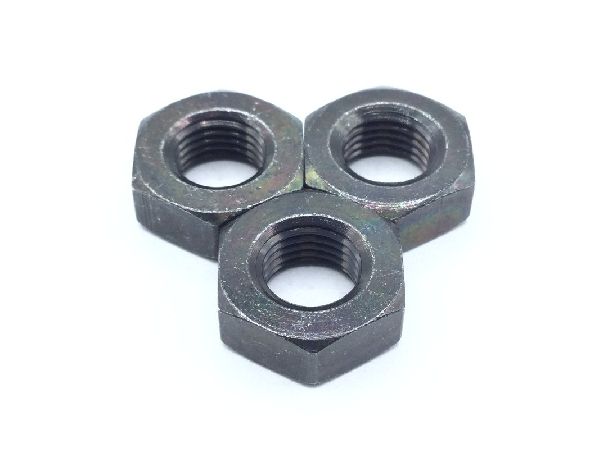

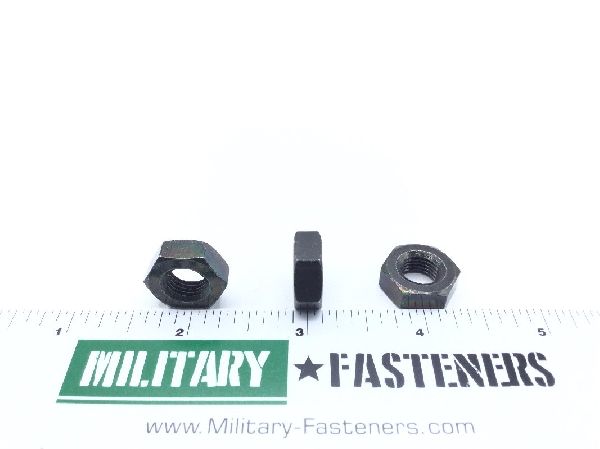

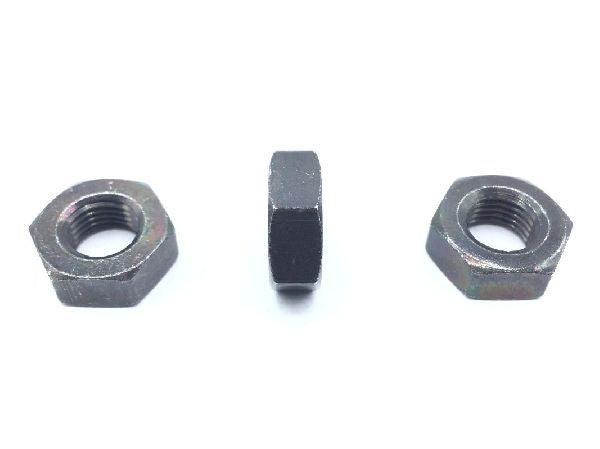

MS35650-3385B Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $11.84

Units per Pack 5

Price per Pack $59.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $59.20

Add item to quote

Material

Copper alloy 360 or copper alloy 462 or copper alloy 464

Surface Treatment

Mil-f-495 military specification single treatment response

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.375 inches

Bearing Surface Type: Chamfered
Material Specification: Qq-b-626 federal specification 1st material response or qq-b-637 federal specification 2nd material response or qq-b-637 federal specification 3rd material response
Nondefinitive Specification/std Data: 2 type and 13 style
Nut Height: Between 0.239 inches and 0.257 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.607 inches and 0.625 inches
