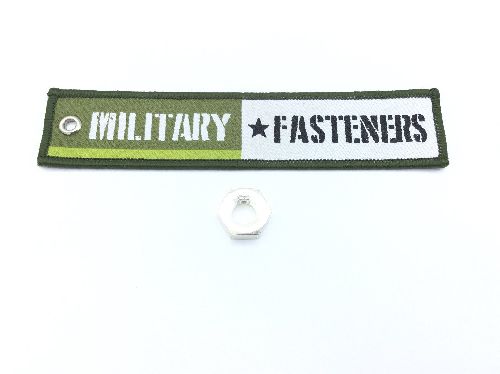

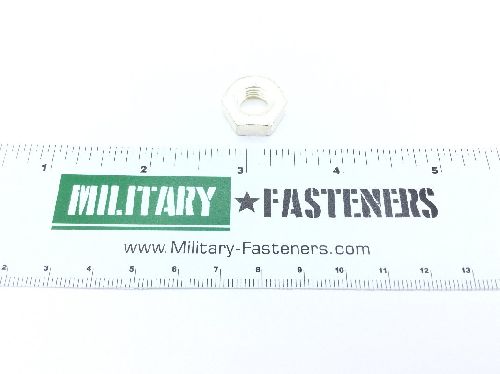

MS35650-3385S Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Copper alloy 462 or copper alloy 464 or copper alloy 377

Surface Treatment

Qq-s-365 federal specification single treatment response

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.375 inches

Bearing Surface Type: Chamfered
Material Specification: Qq-b-637 federal specification 1st material response or qq-b-637 federal specification 1st material response or qq-b-626 comp 21 federal specification 2nd material response
Nondefinitive Specification/std Data: 2 type and 13 style
Nut Height: Between 0.239 inches and 0.257 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.607 inches and 0.625 inches
