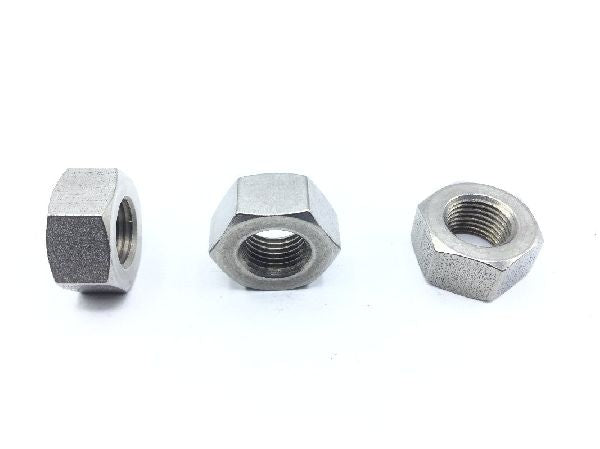

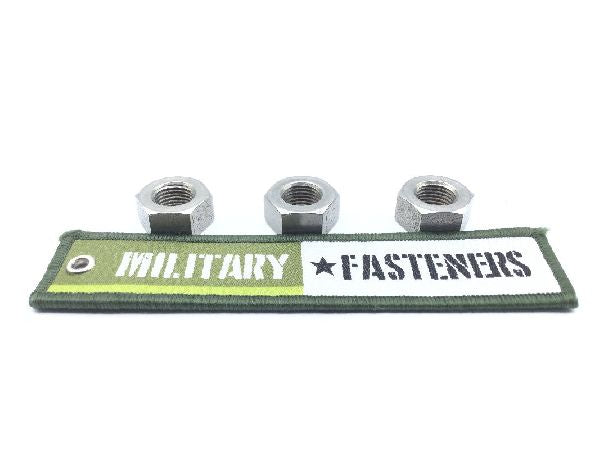

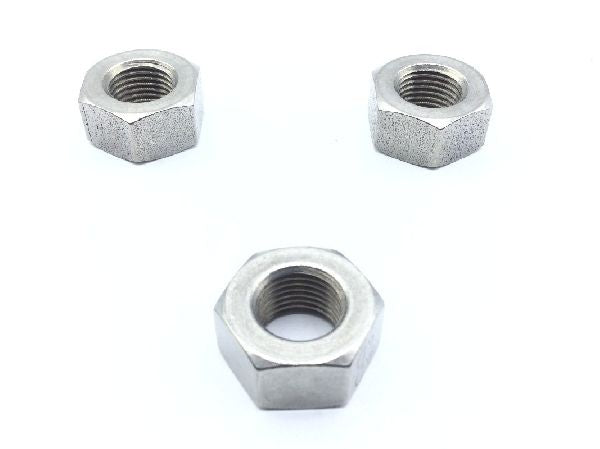

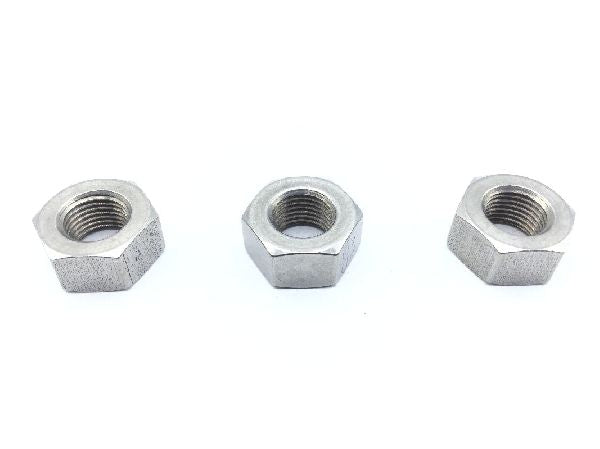

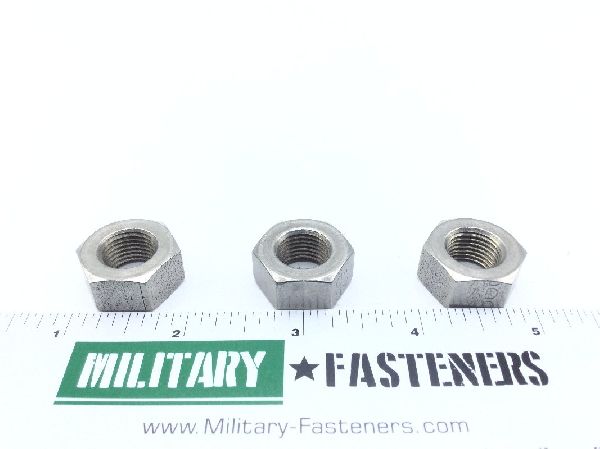

MS35650-3394 Plain Hexagon Nut

MS35650-3394 Plain Hexagon Nut (2)

MS35650-3394 Plain Hexagon Nut (3)

MS35650-3394 Plain Hexagon Nut (4)

MS35650-3394 Plain Hexagon Nut (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS35650-3394 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $7.97

Units per Pack 10

Price per Pack $79.70

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $79.70

Add item to quote

Material

Steel comp

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.500 inches

Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: 2 type and 13 style
Nut Height: Between 0.402 inches and 0.442 inches
Nut Style: Hexagon
Surface Type: Chamfered
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.788 inches and 0.813 inches
