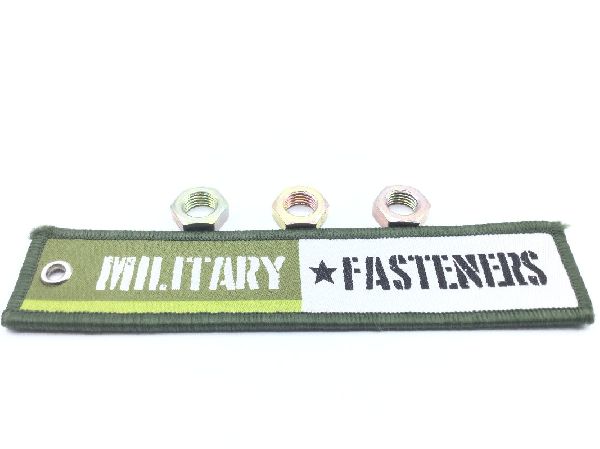

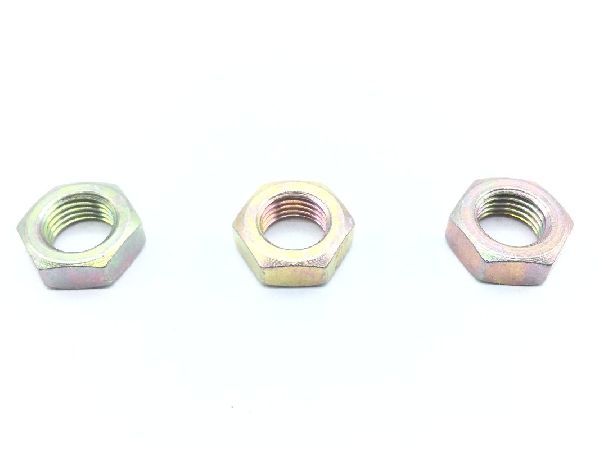

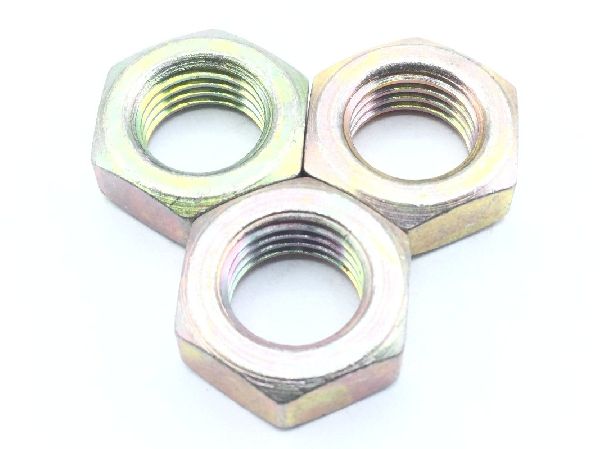

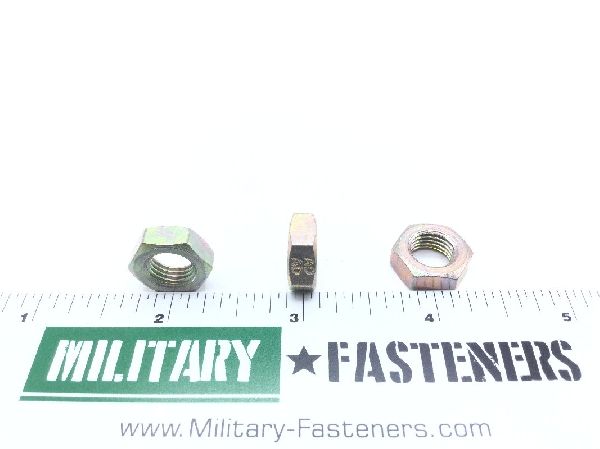

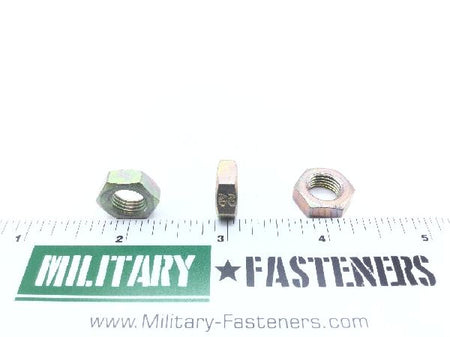

MS35691-22 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $2.22

Units per Pack 20

Price per Pack $44.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $44.40

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.375 inches

Bearing Surface Type: Chamfered or washer faced
Hardness Rating: Between 78.0 rockwell b and 38.0 rockwell c
Nondefinitive Specification/std Data: 2 type and 5 style and c grade
Nut Height: Between 0.210 inches and 0.227 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.551 inches and 0.563 inches
