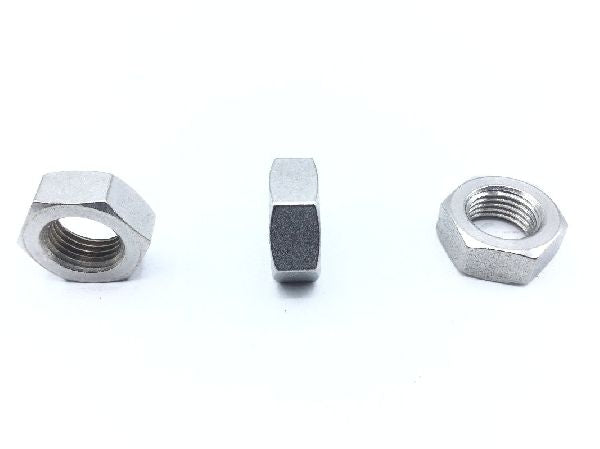

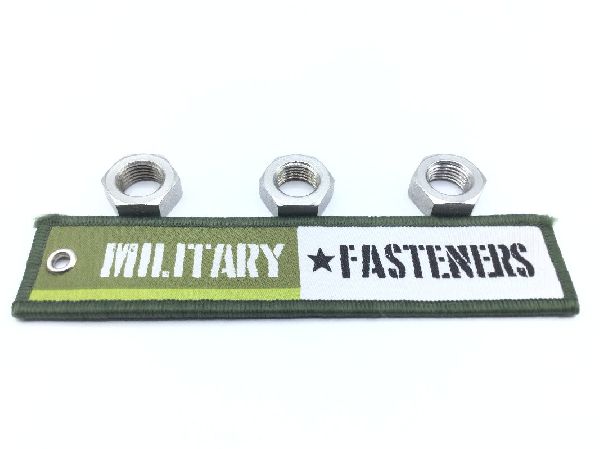

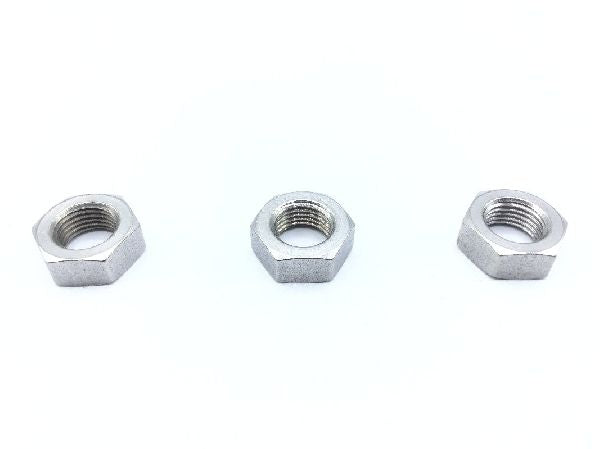

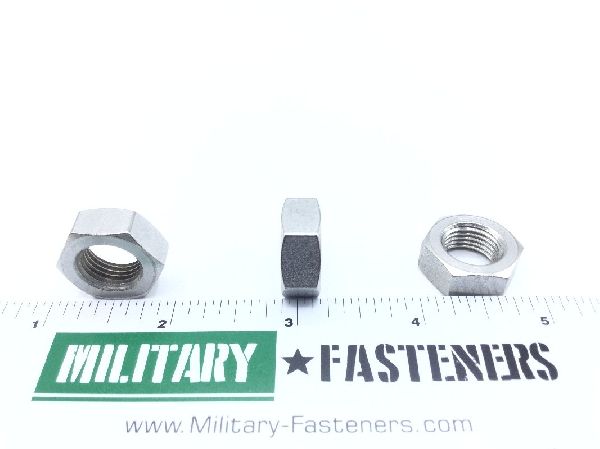

MS35691-39 Plain Hexagon Nut

MS35691-39 Plain Hexagon Nut (2)

MS35691-39 Plain Hexagon Nut (3)

MS35691-39 Plain Hexagon Nut (4)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS35691-39 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 317 or steel comp 347

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.50 inches

Bearing Surface Type: Chamfered or washer faced
Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: 2 type and 5 style and a condition
Nut Height: Between 0.302 inches and 0.323 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.736 inches and 0.750 inches
