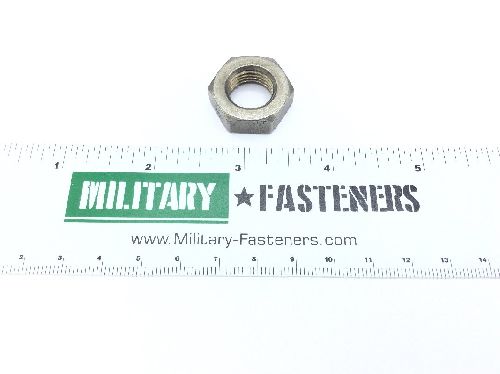

MS35691-47 Plain Hexagon Nut

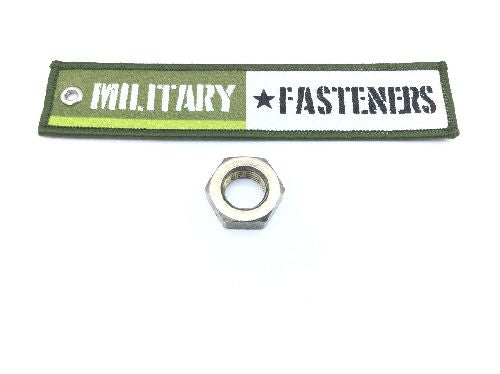

MS35691-47 Plain Hexagon Nut (2)

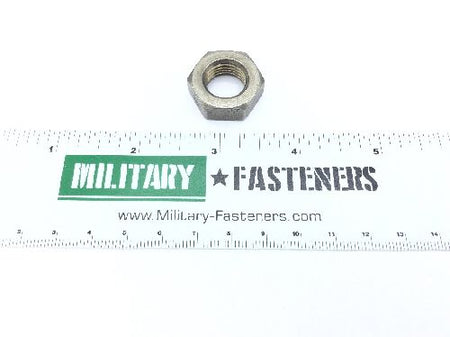

MS35691-47 Plain Hexagon Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS35691-47 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Stainless Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.562 inches

Material Specification: 66 federal standard single material response
Nondefinitive Specification/std Data: 2 type and 5 style and a grade
Nut Height: Between 0.301 inches and 0.324 inches
Nut Style: Hexagon
Surface Type: Chamfered or washer faced
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.861 inches and 0.875 inches
