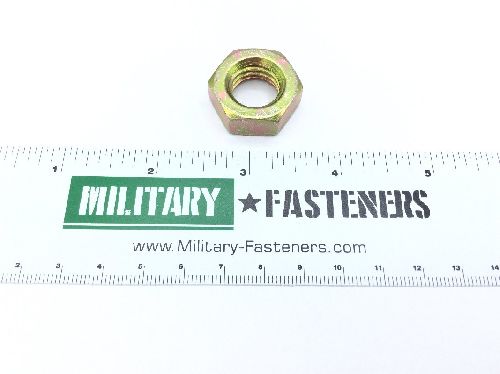

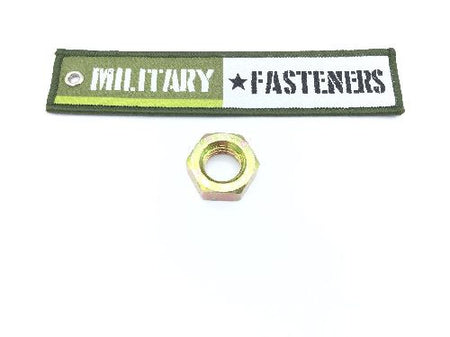

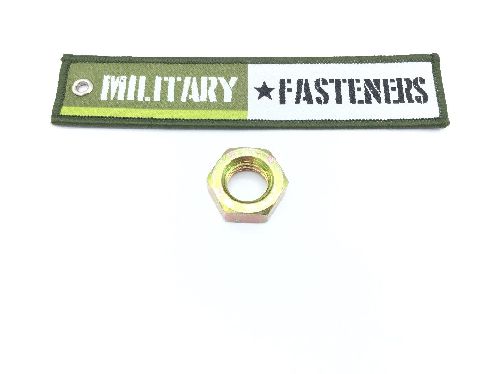

MS35691-49 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.625 inches

Bearing Surface Type: Chamfered or washer faced
Criticality Code Justification: Zzzw
Departure From Cited Document: Certified free from mercury contamination
Hardness Rating: Between 69.0 rockwell b and 32.0 rockwell c
Nondefinitive Specification/std Data: 2 type and 5 style and b grade
Nut Height: Between 0.363 inches and 0.387 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 11
Width Across Flats: Between 0.922 inches and 0.937 inches
