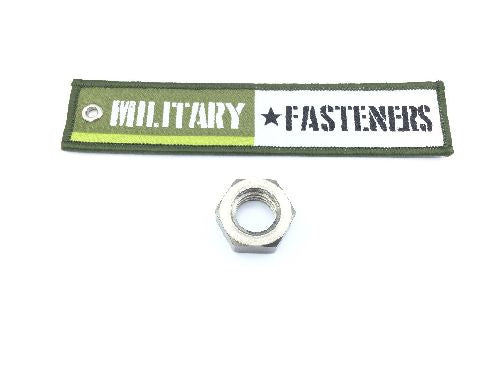

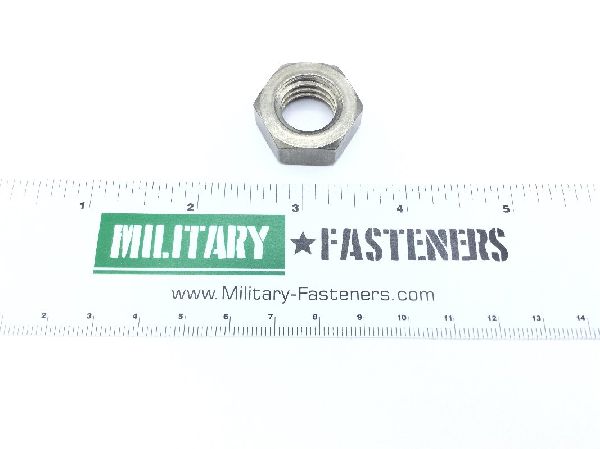

MS35691-51 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $19.95

Units per Pack 5

Price per Pack $99.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $99.75

Add item to quote

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 347

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.625 inches

Bearing Surface Type: Chamfered or washer faced
Material Specification: Qq-s-763 federal specification all material responses
Nondefinitive Specification/std Data: A condition and 2 type and 5 style
Nut Height: Between 0.363 inches and 0.387 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 11
Width Across Flats: Between 0.9220 inches and 0.9375 inches
