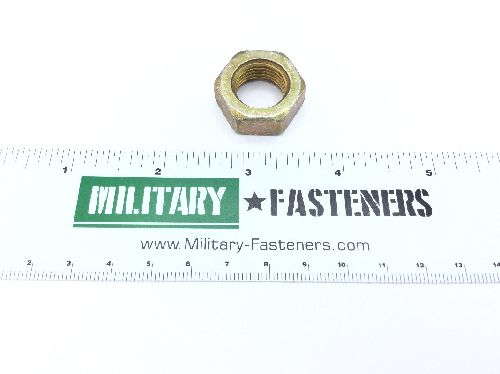

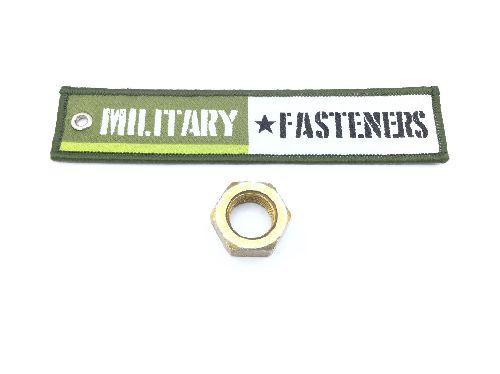

MS35691-53 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.72

Units per Pack 10

Price per Pack $47.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $47.20

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.625 inches

Bearing Surface Type: Chamfered or washer faced
Hardness Rating: Between 95.0 rockwell b and 32.0 rockwell c
Nondefinitive Specification/std Data: 2 type and 5 style and b grade
Nut Height: Between 0.363 inches and 0.387 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.922 inches and 0.938 inches
