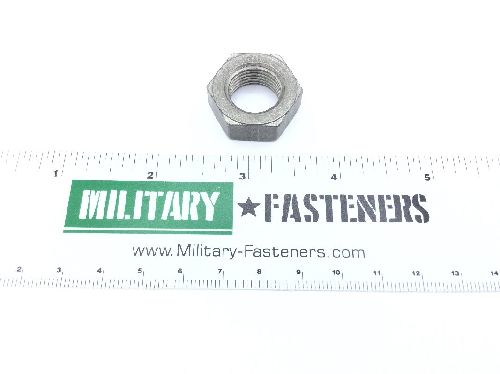

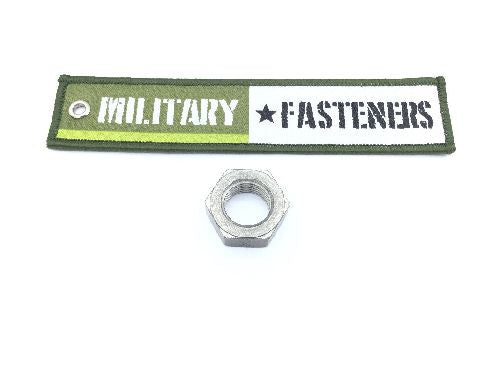

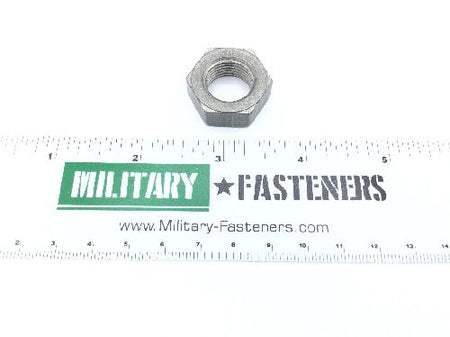

MS35691-55 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.625 inches

Bearing Surface Type: Chamfered or washer faced
Material Specification: Qq-s-763 federal specification all material responses
Nut Height: Between 0.363 inches and 0.387 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 18
Width Across Flats: Between 0.9220 inches and 0.9375 inches
