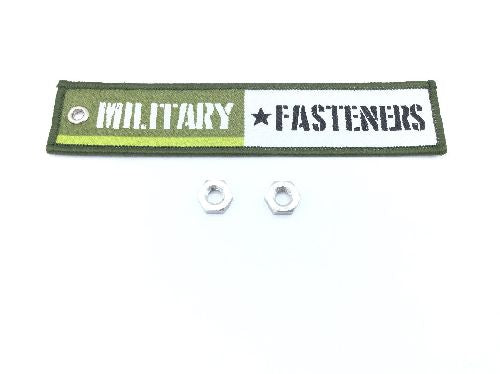

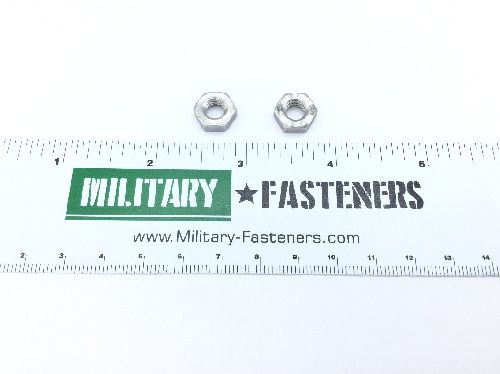

MS35691-7 Plain Hexagon Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2b

Thread Series

Unf (fine thread)

Thread Size

0.25 inches

Bearing Surface Type: Chamfered or washer faced
Material Specification: 347 federal standard all material responses or 317 or 316 or 305 or 304 or 303 type 302 fed standard 66
Nondefinitive Specification/std Data: 2 type and 5 style and a condition
Nut Height: Between 0.150 inches and 0.163 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.428 inches and 0.438 inches
