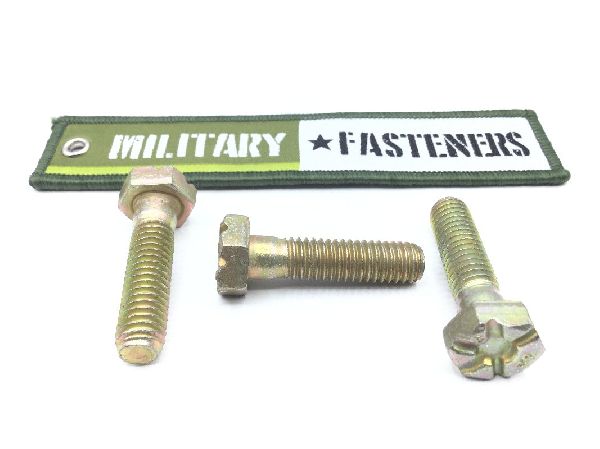

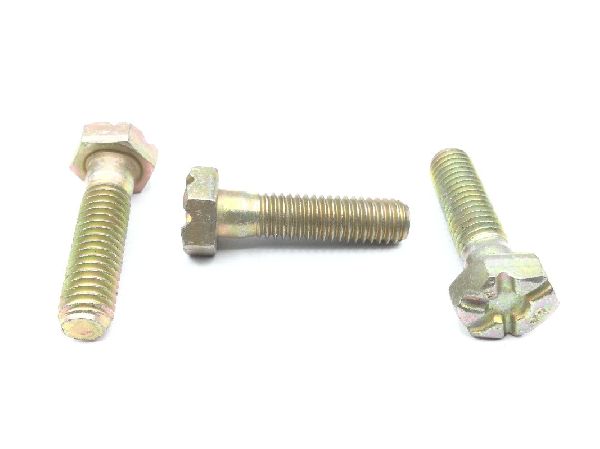

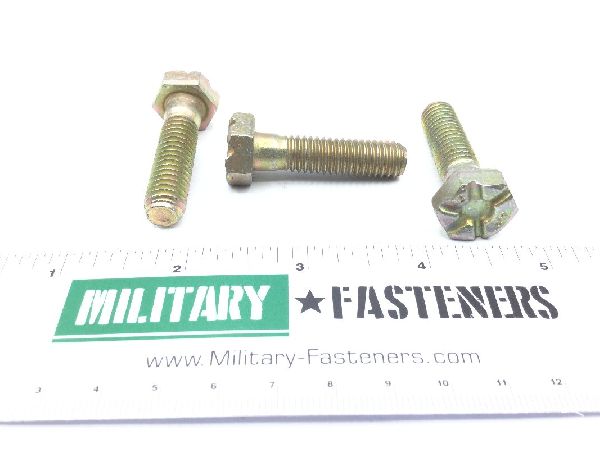

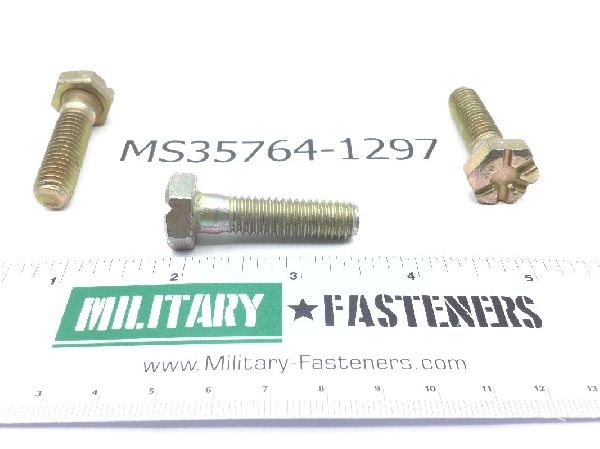

MS35764-1297 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Steel

Surface Treatment

Cl 2 federal specification all treatment responses qq-p-416

Thread Class

Fastener Length: Between 1.460 inches and 1.500 inches
Features: Finished head
Features Provided: Finished head
Grip Length: Between 0.062 inches and 0.500 inches
Hardness Rating: 32.0 rockwell c and 38.0 rockwell c
Head Height: Between 0.250 inches and 0.260 inches
Locking Feature: Distortions bearing surface of head
Min. Tensile Strength (psi): 150000 pounds per square inch
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.960 inches and 1.438 inches
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.612 inches and 0.625 inches
