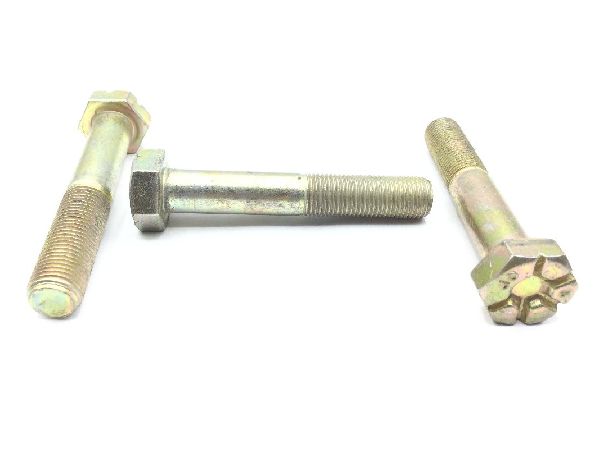

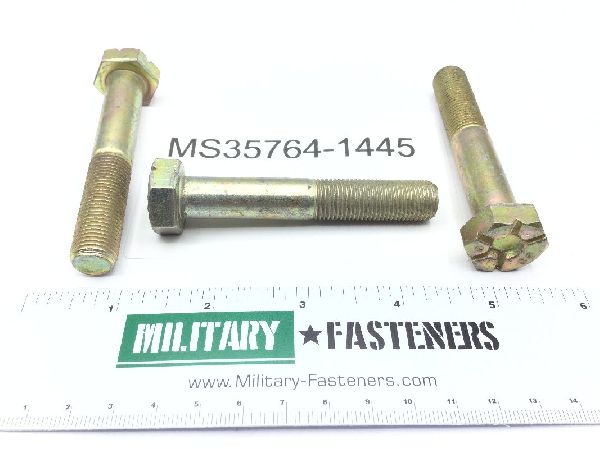

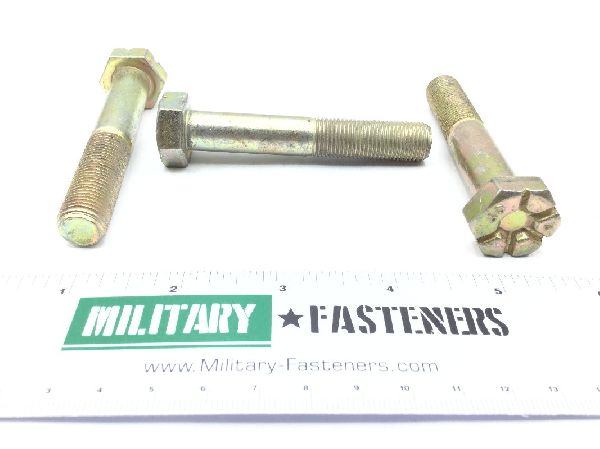

MS35764-1445 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $2.08

Units per Pack 25

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Distorted head

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

End Application: 2.35001E+12
Fastener Length: 3.000 inches
Head Height: Between 0.312 inches and 0.327 inches
Locking Feature: Distortions head
Min. Tensile Strength (psi): 150000 pounds per square inch
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: 1.250 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.798 inches and 0.812 inches
