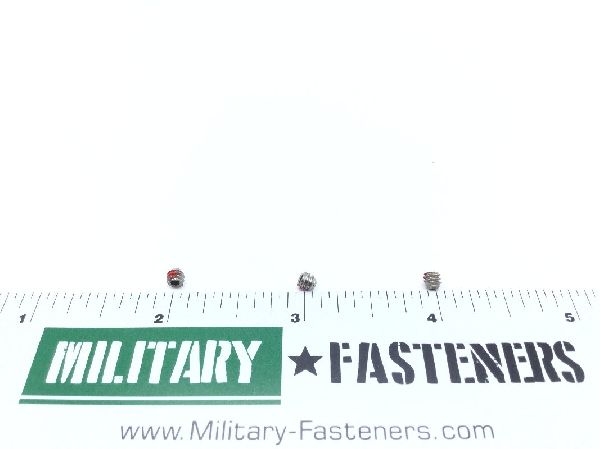

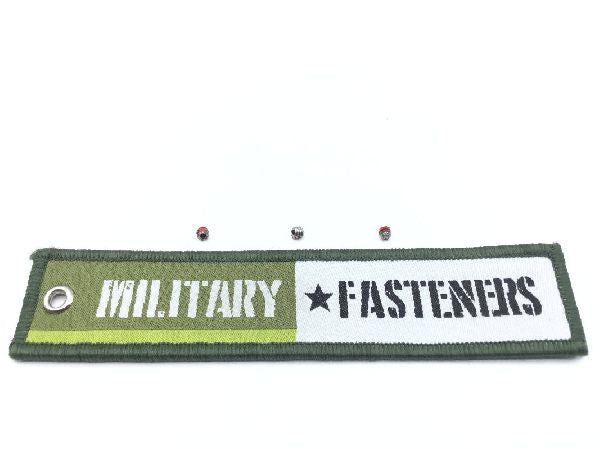

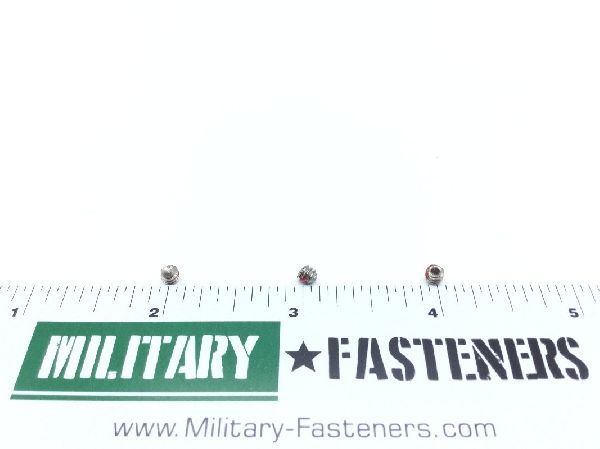

MS51021-111 Setscrew

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.60

Units per Pack 25

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Head Style

Headless (setscrew)

Material

Steel comp

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.115 inches and 0.135 inches
Internal Drive Style: Hexagon
Locking Feature: Patch threads or pellet threads or strip threads
Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: 1 type and 4 style
Point Style: Cup
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.115 inches and 0.135 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: 0.062 inches
