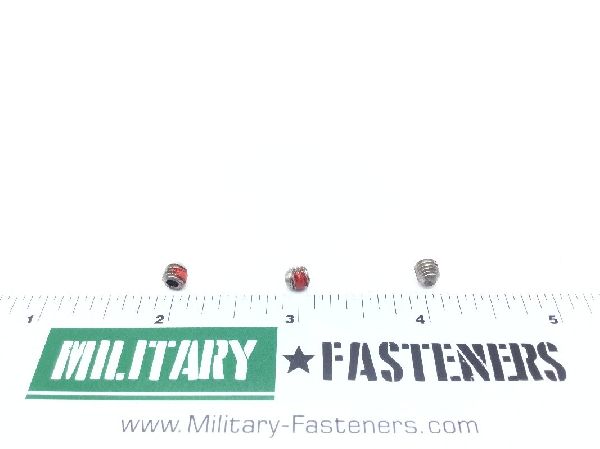

MS51023-102 Machine Screw

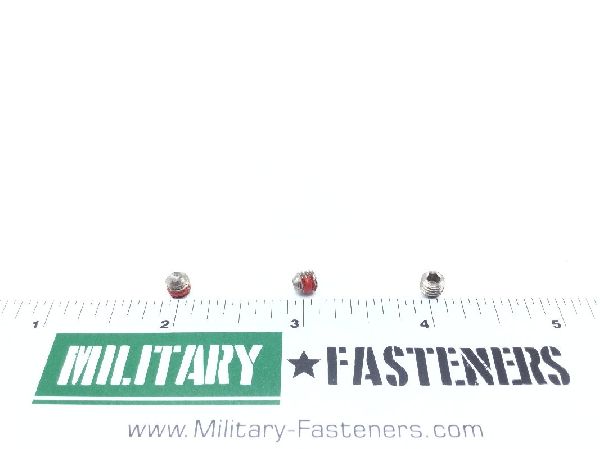

MS51023-102 Machine Screw (2)

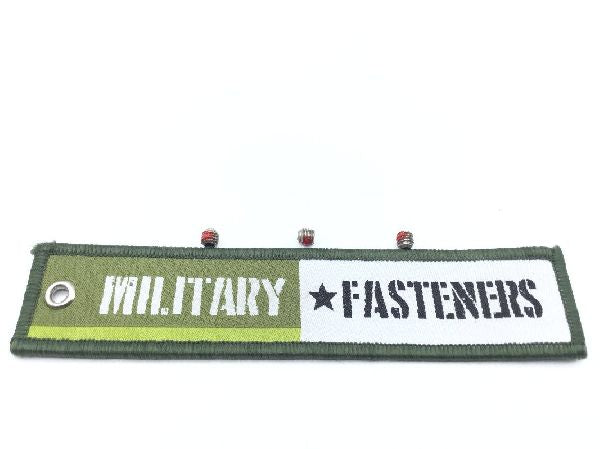

MS51023-102 Machine Screw (3)

MS51023-102 Machine Screw (4)

MS51023-102 Machine Screw (5)

MS51023-102 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51023-102 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Head Style

Headless (setscrew)

Material

Steel comp 301 or steel comp 302 or steel comp 302b or steel comp 303 or steel comp 303se or steel comp 304 or steel comp 304l or steel comp 305 or steel comp 308 or steel comp 309 or steel comp 309s or steel comp 310 or steel comp 310s

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3a

Fastener Length: Between 0.178 inches and 0.198 inches
Hardness Rating: 25.0 rockwell c and 45.0 rockwell c
Internal Drive Style: Hexagon
Locking Feature: Distortions threads
Nondefinitive Specification/std Data: 1 type and 4 style
Point Style: Cup
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.178 inches and 0.198 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: 0.094 inches
