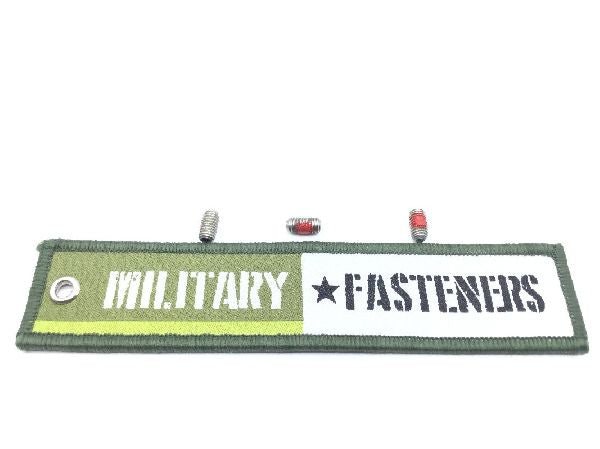

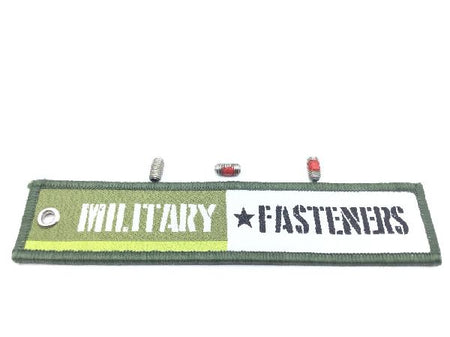

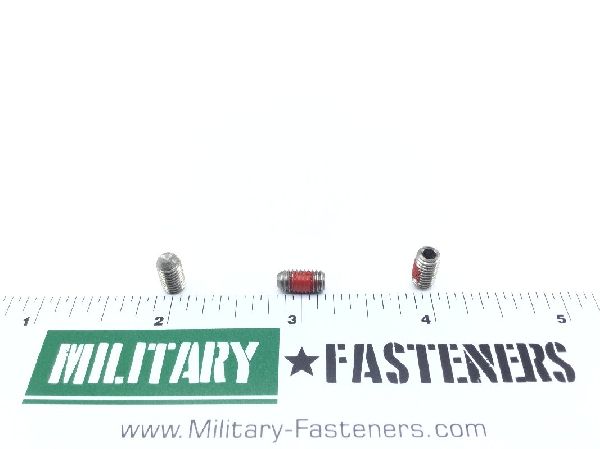

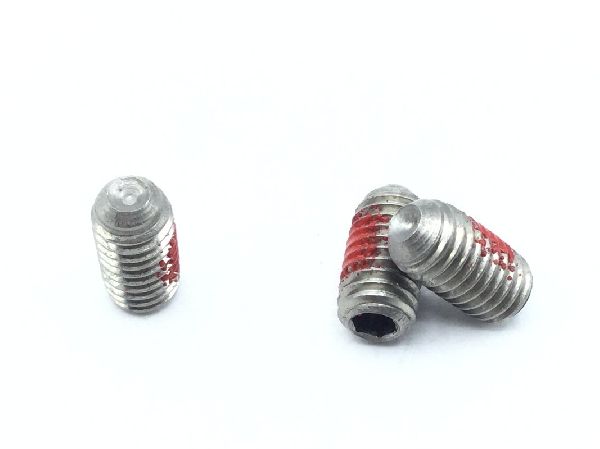

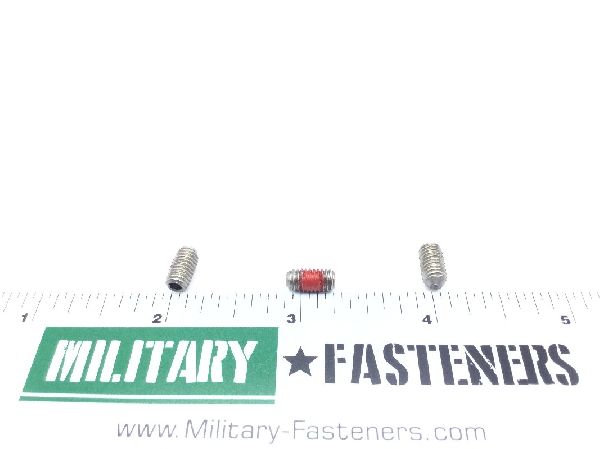

MS51023-105 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $7.94

Units per Pack 10

Price per Pack $79.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $79.40

Add item to quote

Head Style

Headless (setscrew)

Material

Steel comp 301 or steel comp 302 or steel comp 303 or steel comp 303f or steel comp 304 or steel comp 304l or steel comp 305 or steel comp 308 or steel comp 309 or steel comp 309s or steel comp 310 or steel comp 310s or steel comp 314 o

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.365 inches and 0.385 inches
Internal Drive Style: Hexagon
Locking Feature: Patch threads or pellet threads or strip threads
Material Specification: 66 federal standard all material responses
Nondefinitive Specification/std Data: 1 type and 4 style
Point Style: Cup
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.365 inches and 0.385 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: 0.094 inches
