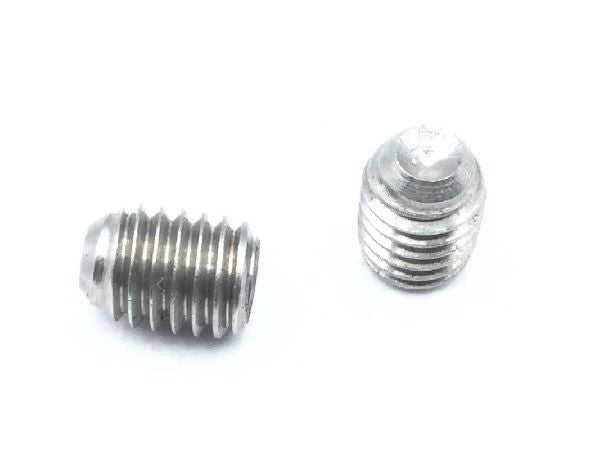

MS51023-49 Machine Screw

MS51023-49 Machine Screw (2)

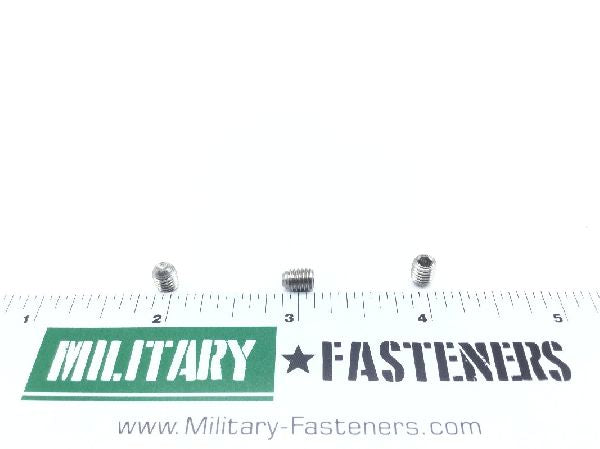

MS51023-49 Machine Screw (3)

MS51023-49 Machine Screw (4)

MS51023-49 Machine Screw (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51023-49 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $5.20

Units per Pack 10

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Headless (setscrew)

Material

Steel comp 303 or steel comp 302 or steel comp 304 or steel comp 305

Thread Class

3a

Fastener Length: 0.250 inches
Internal Drive Style: Hexagon
Point Style: Cup
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.250 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.093 inches and 0.094 inches
