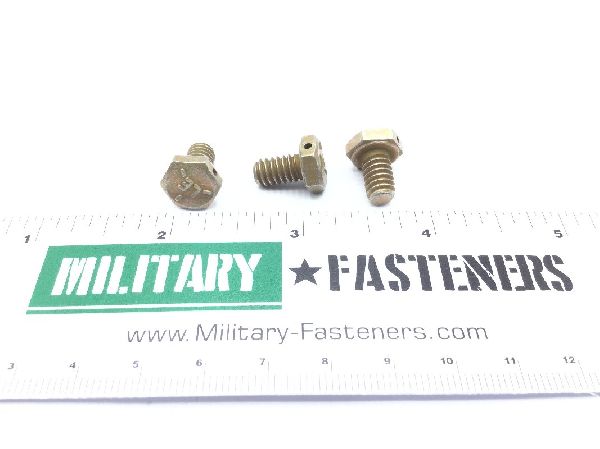

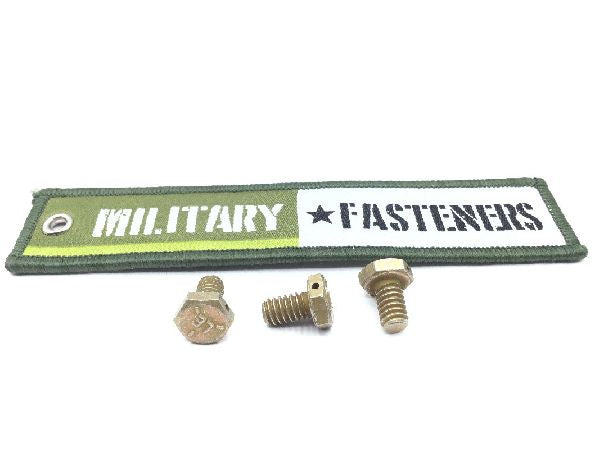

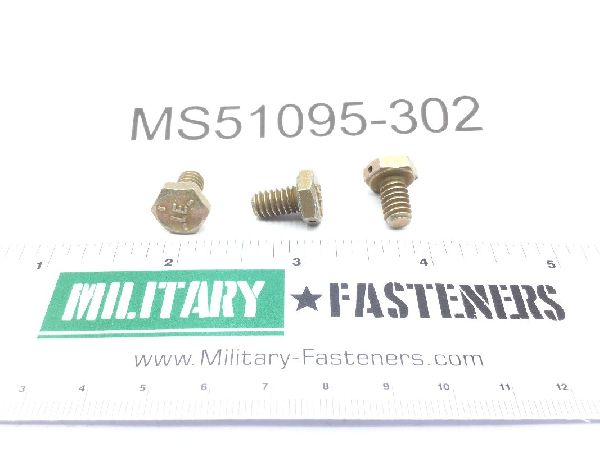

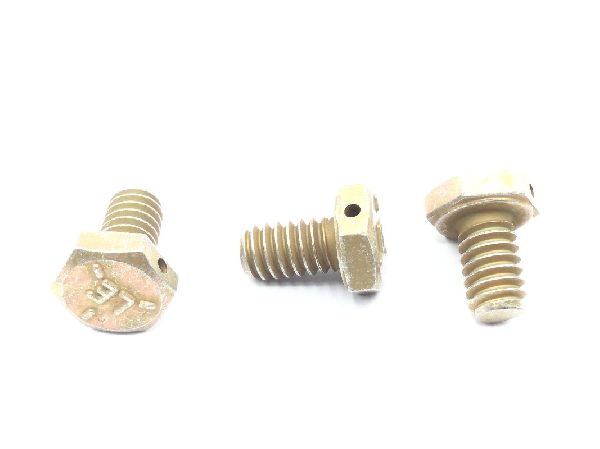

MS51095-302 Machine Bolt

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $2.70

Units per Pack 20

Price per Pack $54.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $54.00

Add item to quote

Head Style

Hexagon

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Fastener Length: Between 0.407 inches and 0.438 inches
Hardness Rating: 25.0 rockwell c and 34.0 rockwell c
Head Height: Between 0.150 inches and 0.163 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 1
Hole Type: Drilled
Material Specification: Sae gr 5 assn standard single material response
Min. Tensile Strength (psi): 120000 pounds per square inch
Nondefinitive Specification/std Data: P type and 10p style and 5 grade
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.307 inches and 0.438 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.428 inches and 0.438 inches
Hole Diameter: 0.063 inches
