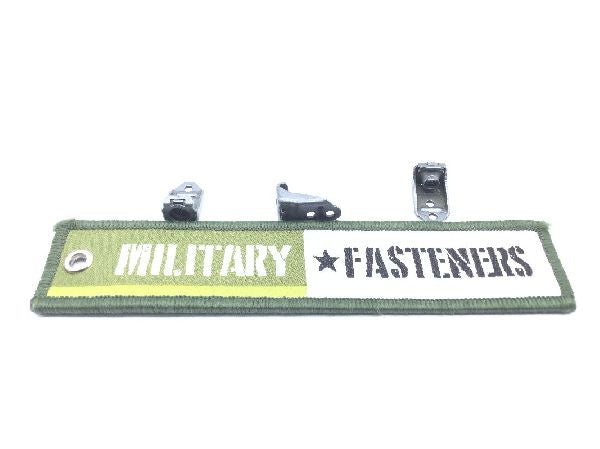

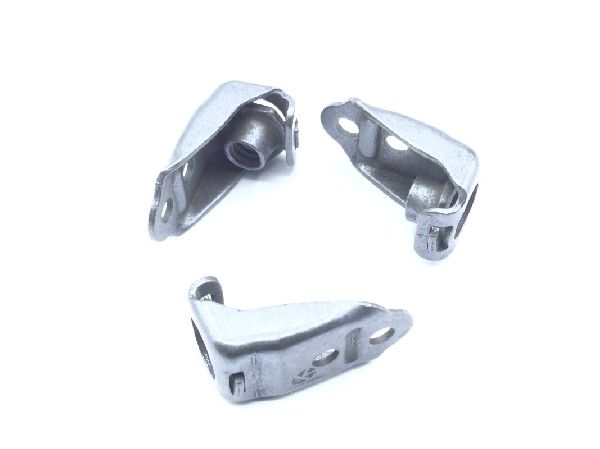

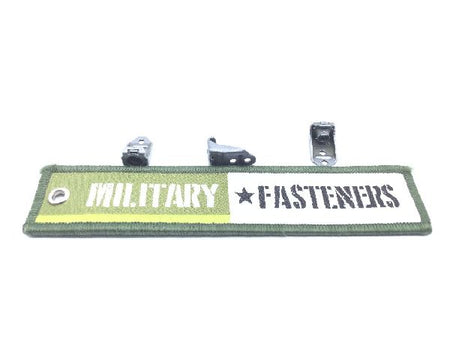

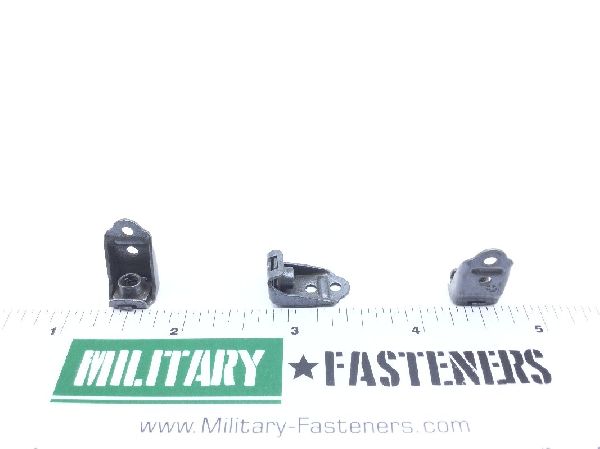

MS51552L08 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 4130 or steel comp 4340 or steel comp 8740

Thread Class

Thread Series

Unjc

Thread Size

0.112 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.217 inches and 0.221 inches
Distance From Base To Center Of Aperture: Between 0.165 inches and 0.175 inches
Distance From Mounting Hole Center To Base: 0.133 inches
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Astm a29 assn standard all material responses
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.153 inches
Nut Length: 0.684 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: Between 0.020 inches and 0.035 inches
Plate Width: 0.325 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Lubrication: Dry film lubricant
