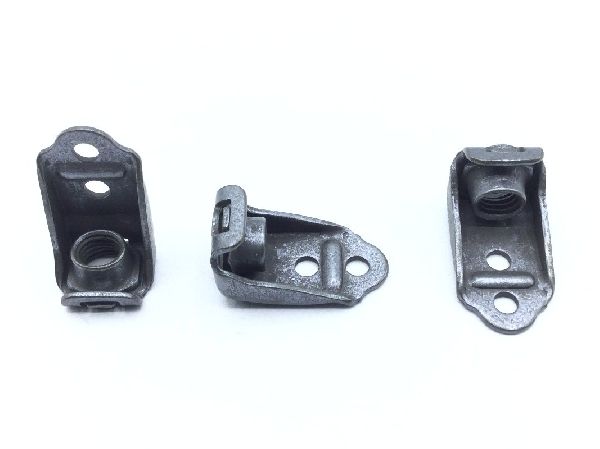

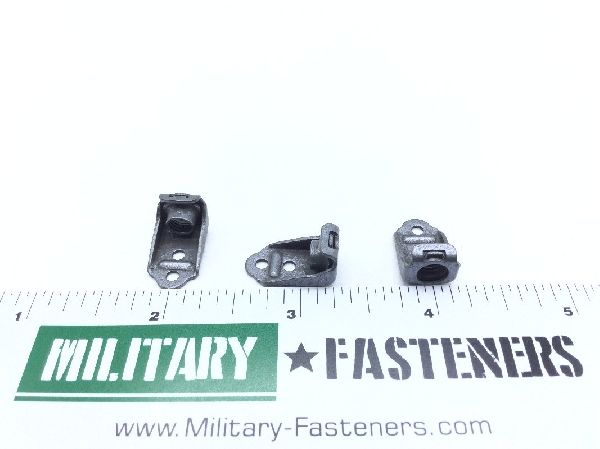

MS51552L3 Self-Locking Nutplate

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel comp 1035 or steel comp 1040 or steel comp 1050 or steel comp 4130 or steel comp 4340 or steel comp 8740

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.217 inches and 0.221 inches
Counterbore Diameter: 0.194 inches nut
Distance From Base To Center Of Aperture: Between 0.205 inches and 0.215 inches
Distance From Mounting Hole Center To Base: Between 0.370 inches and 0.380 inches
Features: Floating nut
Features Provided: Floating nut
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Material Specification: Astm a29 assn standard all material responses
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.062 inches nut
Nut Height: 0.250 inches
Nut Length: 0.734 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: Between 0.027 inches and 0.042 inches
Plate Width: 0.415 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
