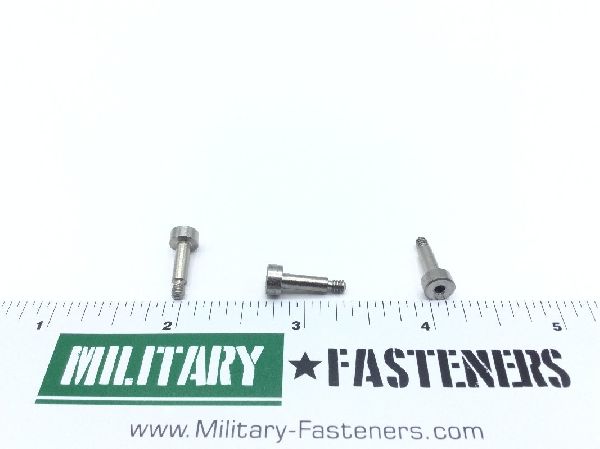

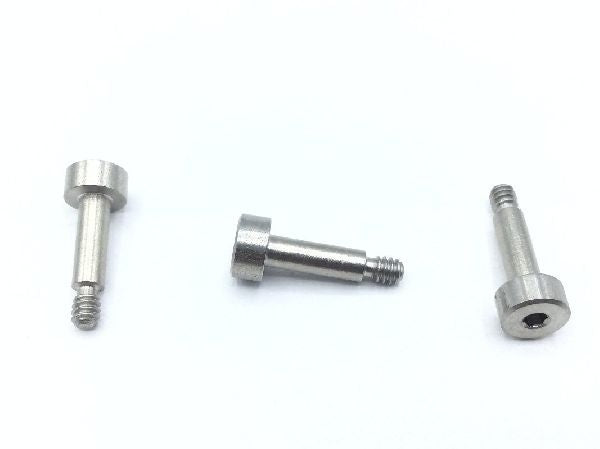

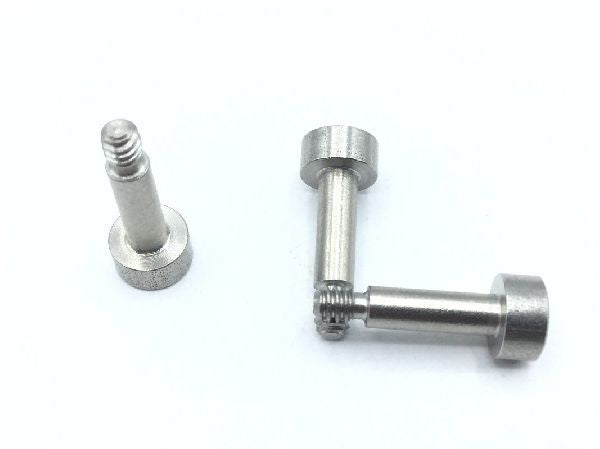

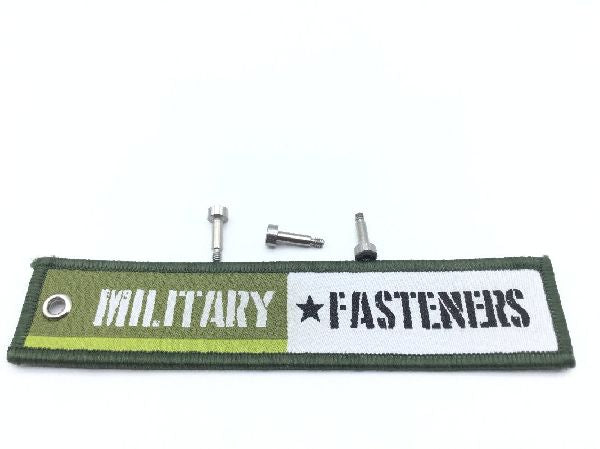

MS51576-5 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $10.05

Units per Pack 10

Price per Pack $100.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $100.50

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: 0.687 inches
Hardness Rating: 32.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.093 inches and 0.156 inches
Internal Drive Style: Hexagon
Material Specification: Astm a493 assn standard 1st material response or astm a582 assn standard 2nd material response
Shoulder Diameter: 0.1235 inches first shoulder and 0.1245 inches first shoulder
Shoulder Length: 0.372 inches first shoulder and 0.378 inches first shoulder
Shoulder Shape: Round first shoulder
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.125 inches and 0.187 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Width Across Flats: 0.078 inches
Head Diameter: Between 0.218 inches and 0.281 inches
