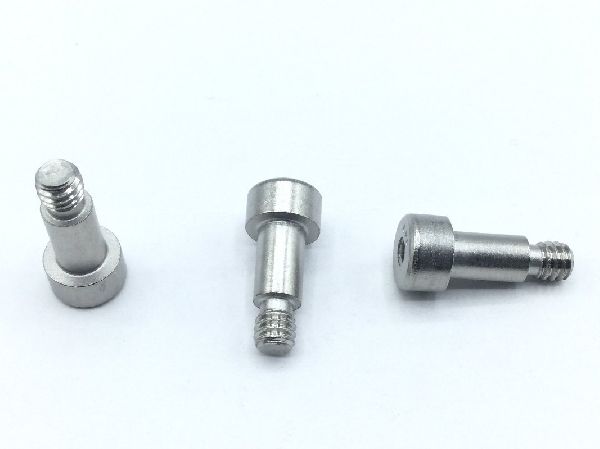

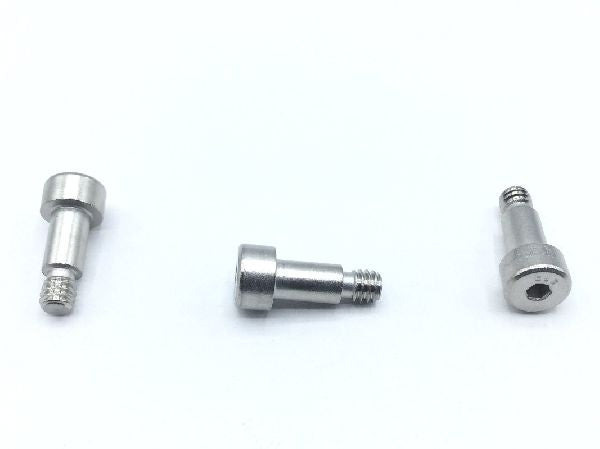

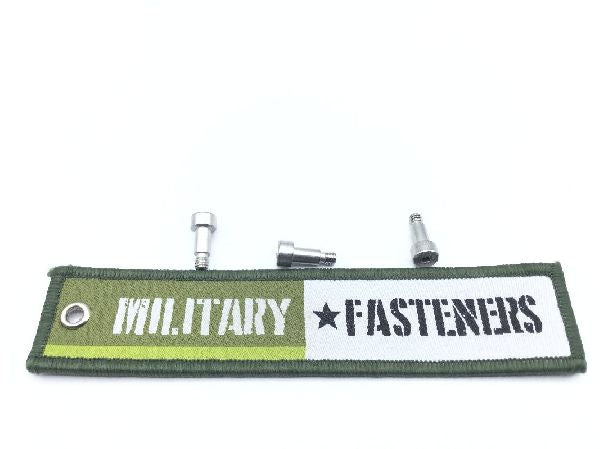

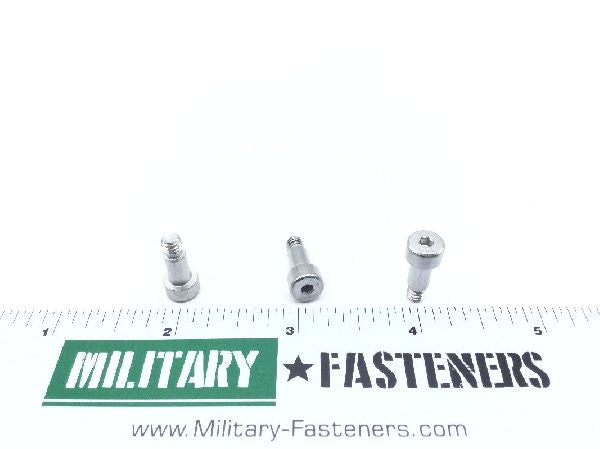

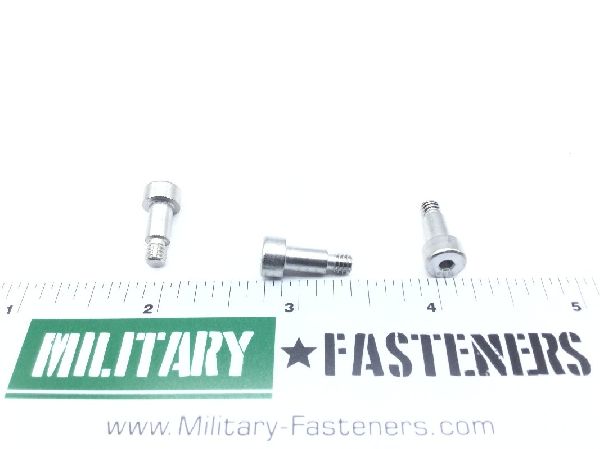

MS51576-9 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $10.24

Units per Pack 5

Price per Pack $51.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $51.20

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 0.501 inches and 0.503 inches
Head Height: 0.156 inches
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Shoulder Diameter: 0.186 inches first shoulder and 0.188 inches first shoulder
Shoulder Length: 0.313 inches first shoulder and 0.316 inches first shoulder
Shoulder Shape: Round first shoulder
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.188 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Across Flats: 0.094 inches
Head Diameter: 0.312 inches
