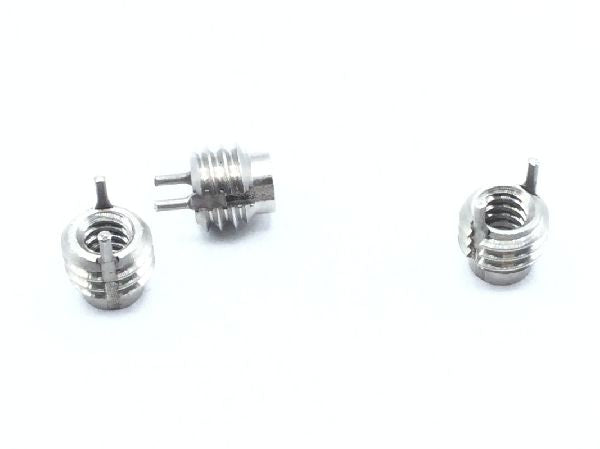

MS51830-102 Screw Thread Insert

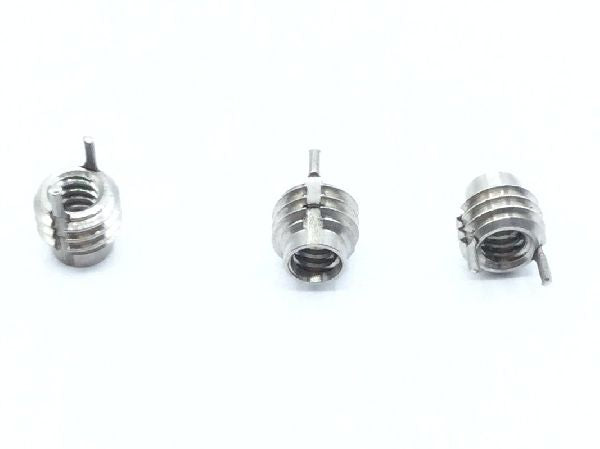

MS51830-102 Screw Thread Insert (2)

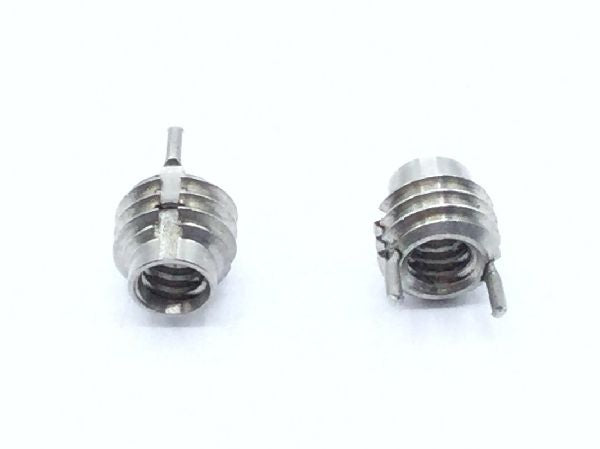

MS51830-102 Screw Thread Insert (3)
MS51830-102 Screw Thread Insert
MS51830-102 Screw Thread Insert (2)
MS51830-102 Screw Thread Insert (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51830-102 Screw Thread Insert

Product Series
MS
ECCN
EAR99
Schedule
7318.16.0085
Price per Unit $3.72
Units per Pack 10
Price per Pack $37.20
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $37.20
Add item to quote
Material
Steel comp 302
Surface Treatment
Qq-p-35 federal specification single treatment response
Full Internal Thread Length
0.17 inches
Insert Size
0.190-32 unf (fine thread) class 2a
Length
0.170 inches
Material Specification
Fed standard 66 federal standard single material response
Style Designator
Keylock
