MS51830-103L Screw Thread Insert
MS51830-103L Screw Thread Insert (2)

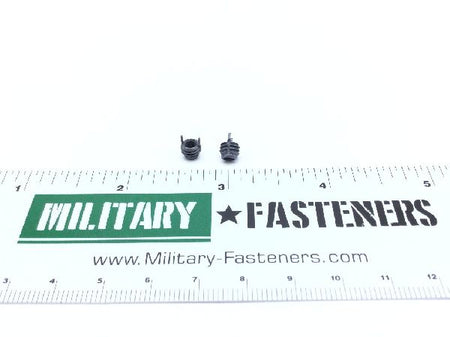

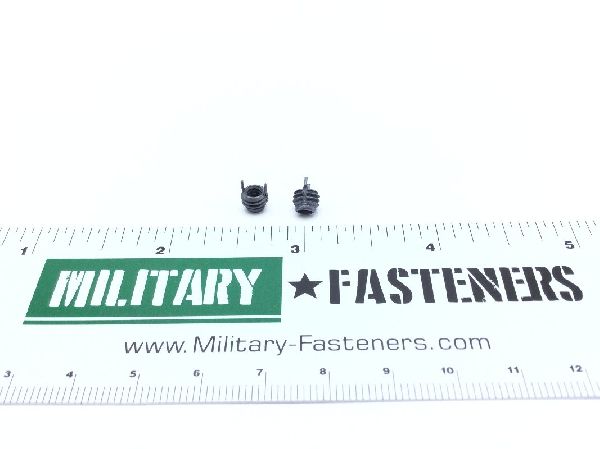

MS51830-103L Screw Thread Insert (3)
MS51830-103L Screw Thread Insert
MS51830-103L Screw Thread Insert (2)
MS51830-103L Screw Thread Insert (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51830-103L Screw Thread Insert

Product Series
MS
ECCN
EAR99
Schedule
7318.16.0085
Price per Unit $5.72
Units per Pack 10
Price per Pack $57.20
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $57.20
Add item to quote
Material
Steel
Thread Class
2a
Thread Size
0.138 inches
Features
Individually keyed
Features Provided
Individually keyed
Full Internal Thread Length
0.141 inches
Insert Size
0.216-12 unf (fine thread) 2a
Internal Thread Relief Depth
0.010 inches
Length
Between 0.155 inches and 0.185 inches
Material Specification
Fed standard 66 federal standard single material response
Style Designator
Grooved keylock
Thread Direction
Right-hand
Thread Length
0.216 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
