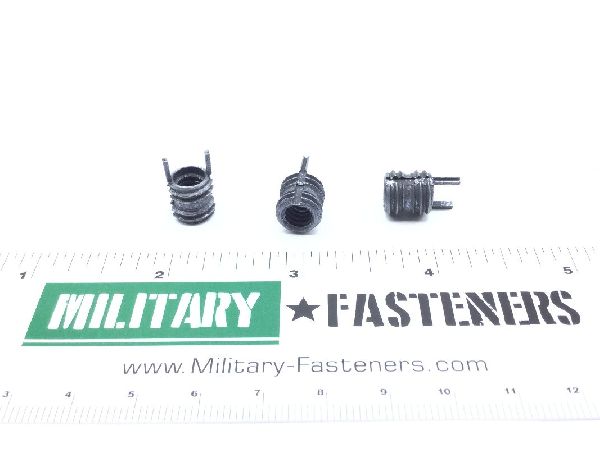

MS51830-106L Screw Thread Insert

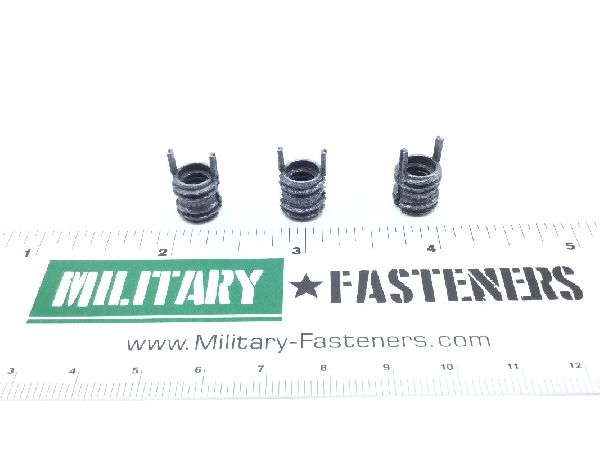

MS51830-106L Screw Thread Insert (2)

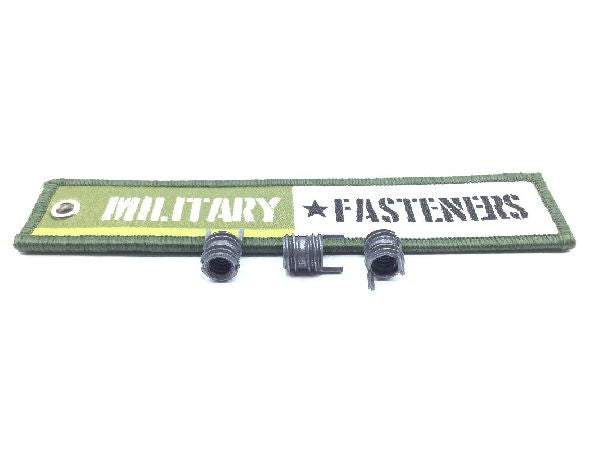

MS51830-106L Screw Thread Insert (3)

MS51830-106L Screw Thread Insert (4)

MS51830-106L Screw Thread Insert (5)

MS51830-106L Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51830-106L Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $8.40

Units per Pack 5

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Material

Steel comp 304

Thread Size

0.250 inches

Features: Individually keyed
Features Provided: Individually keyed
Full Internal Thread Length: 0.305 inches
Insert Size: 0.375-16
Internal Thread Relief Depth: 0.070 inches
Length: 0.375 inches
Material Specification: Cond b federal specification single material response qq-s-764
Style Designator: Grooved keylock
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
