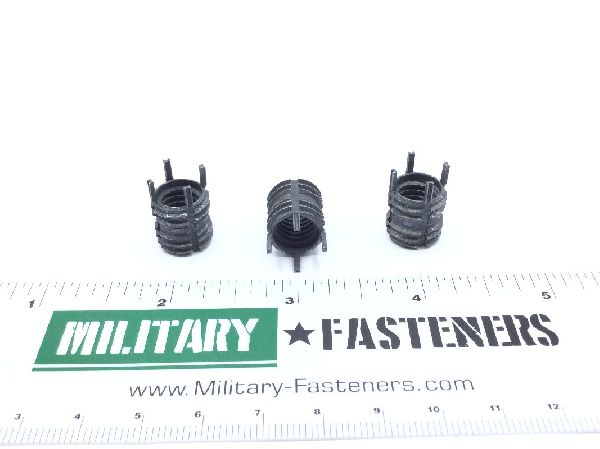

MS51830-108L Screw Thread Insert

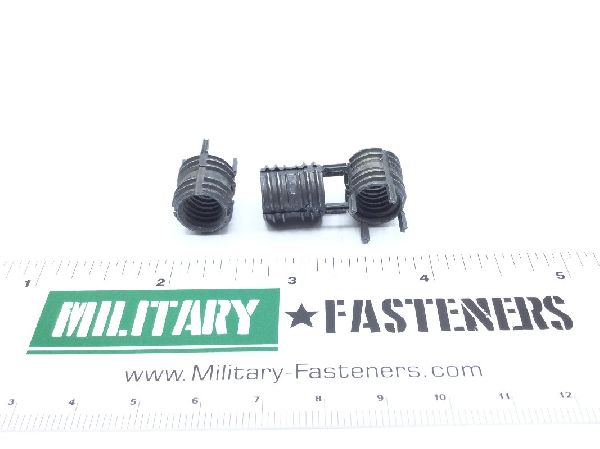

MS51830-108L Screw Thread Insert (2)

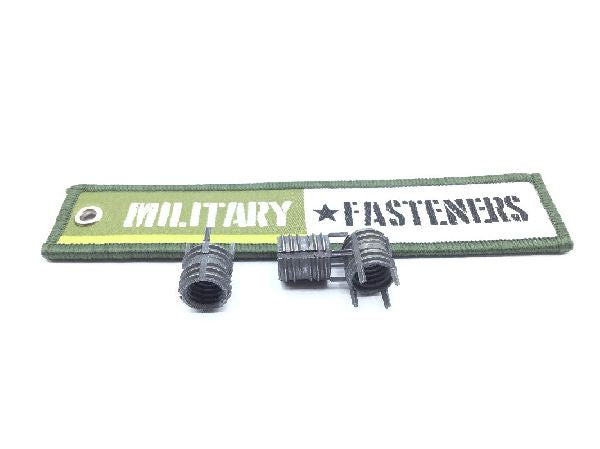

MS51830-108L Screw Thread Insert (3)

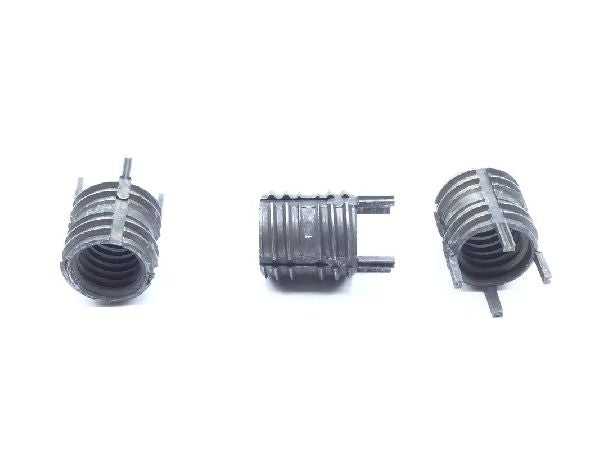

MS51830-108L Screw Thread Insert (4)

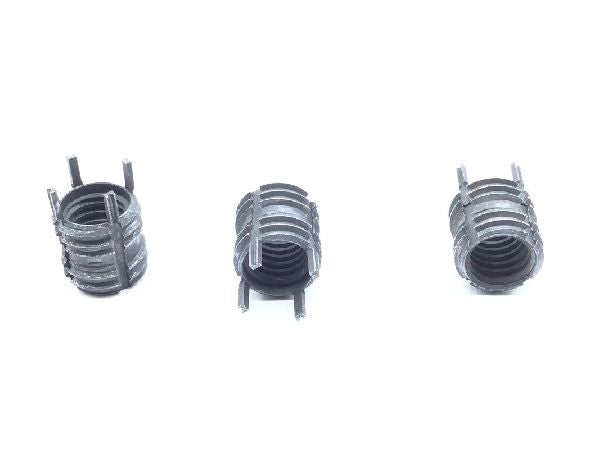

MS51830-108L Screw Thread Insert (5)

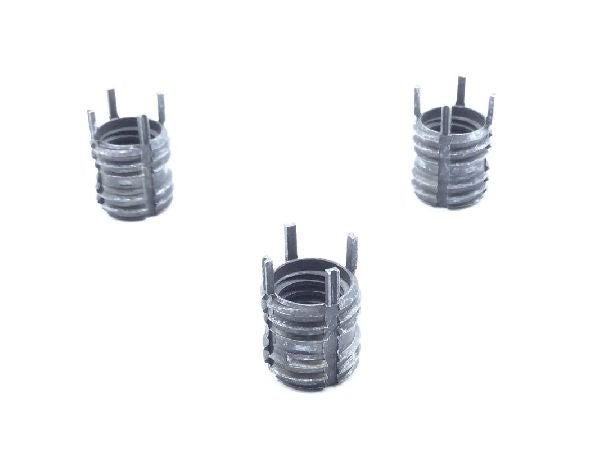

MS51830-108L Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51830-108L Screw Thread Insert

NSN: 5325-00-006-0639
Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel comp 303

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3b

Thread Size

0.375 inches

Features: Individually keyed
Features Provided: Individually keyed
Full Internal Thread Length: 0.430 inches
Insert Size: 0.500-13 unc (coarse thread) class 2a
Internal Thread Relief Depth: 0.070 inches
Length: 0.500 inches
Material Specification: Aisi assn standard single material response
Style Designator: Grooved keylock
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unjc
