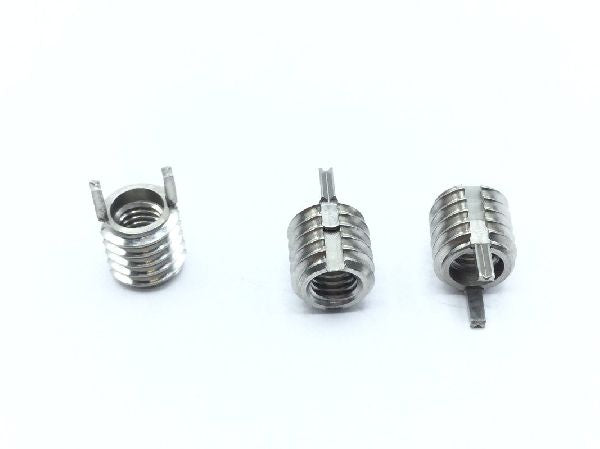

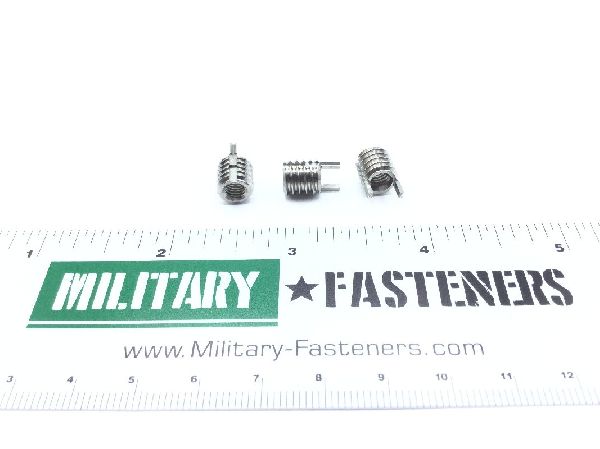

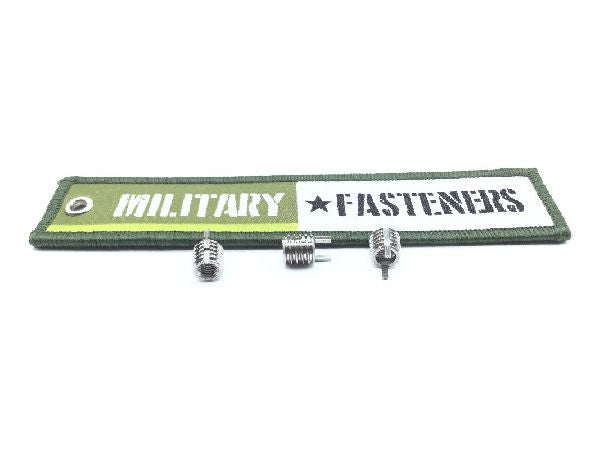

MS51830-201 Screw Thread Insert

MS51830-201 Screw Thread Insert (2)

MS51830-201 Screw Thread Insert (3)

MS51830-201 Screw Thread Insert (4)

MS51830-201 Screw Thread Insert (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51830-201 Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.10

Units per Pack 10

Price per Pack $41.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.00

Add item to quote

Material

Steel comp 302

Thread Class

2a

Thread Size

0.312 inches

Full Internal Thread Length: 0.242 inches
Insert Size: 43236
Internal Thread Relief Depth: 0.070 inches
Length: 0.312 inches
Material Specification: Cond b military specification single material response mil-s-7720
Style Designator: Grooved keylock
Thread Direction: Right-hand
Thread Length: 0.242 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unc (coarse thread)
