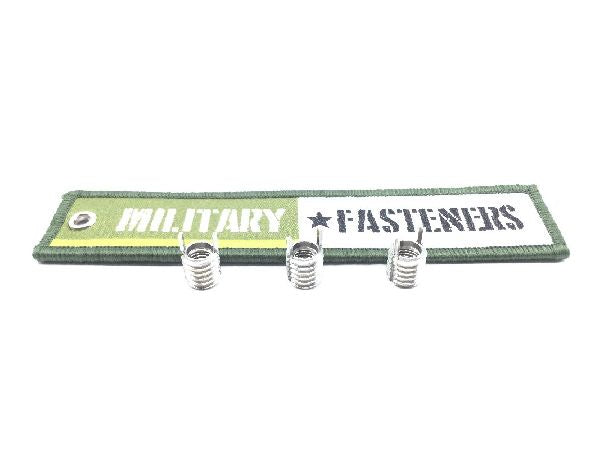

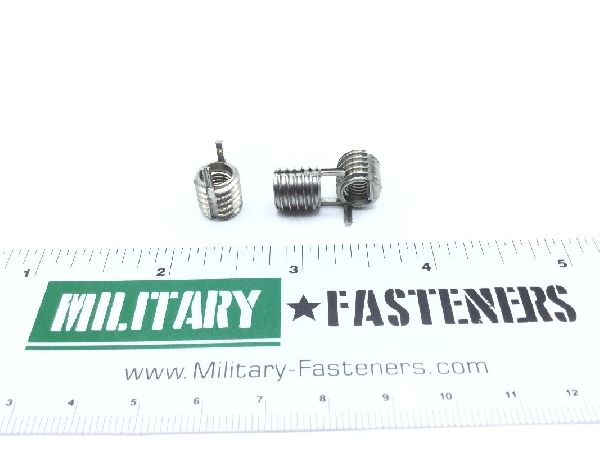

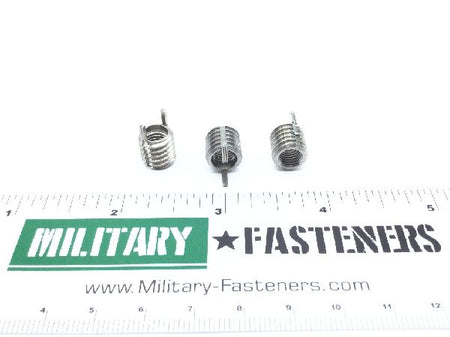

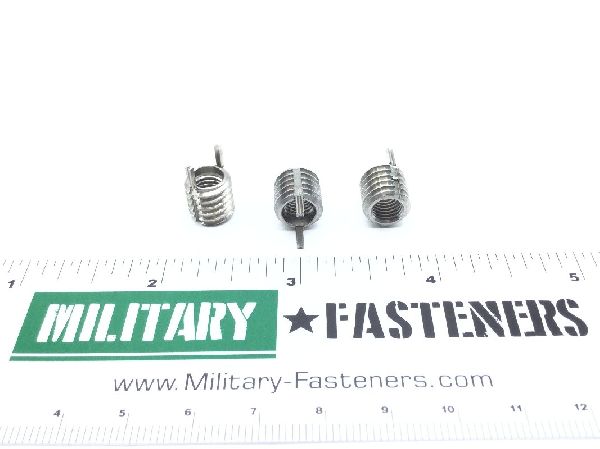

MS51830-202 Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.15

Units per Pack 10

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Material

Steel

Thread Class

Thread Size

0.250 inches

Full Internal Thread Length: 0.305 inches
Insert Size: 0.375-16 unc (coarse thread) class 2a
Internal Thread Relief Depth: 0.070 inches
Length: 0.375 inches
Material Specification: Ams5640(type1or2) federal specification all material responses or astm-a-582 federal standard all material responses or ast-5737 military specification all material responses
Style Designator: Grooved keylock
Thread Direction: Right-hand
Thread Length: 0.375 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
