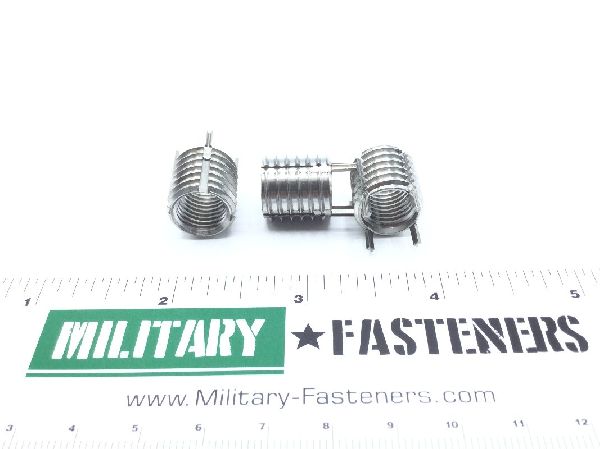

MS51830-205 Screw Thread Insert

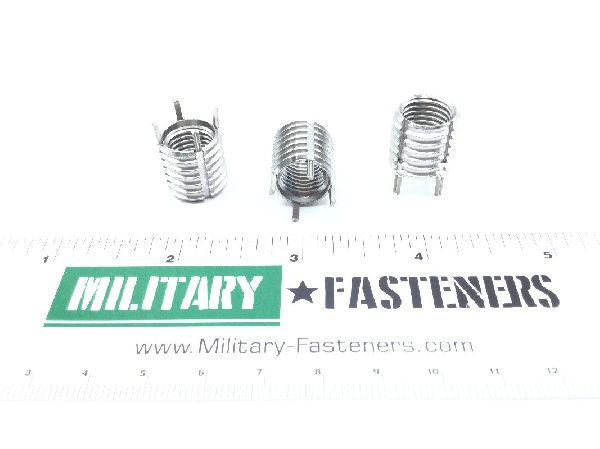

MS51830-205 Screw Thread Insert (2)

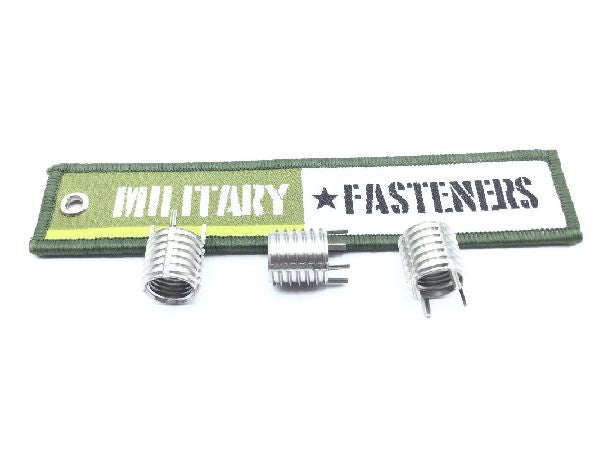

MS51830-205 Screw Thread Insert (3)

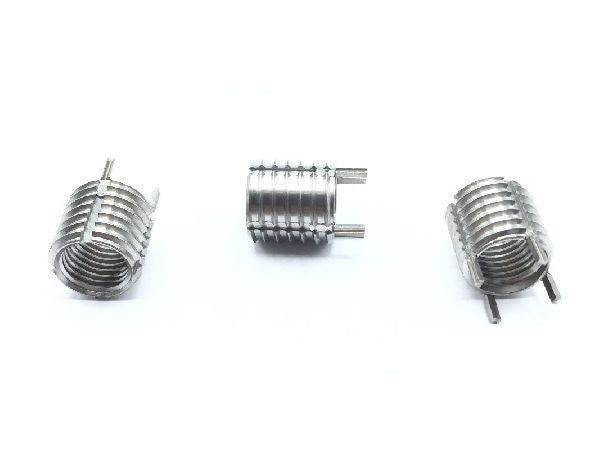

MS51830-205 Screw Thread Insert (4)

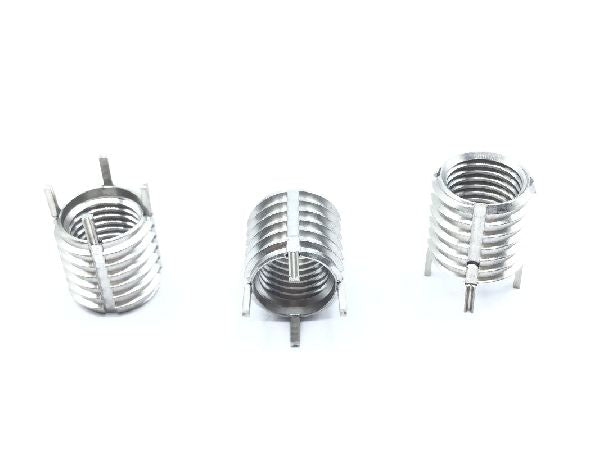

MS51830-205 Screw Thread Insert (5)

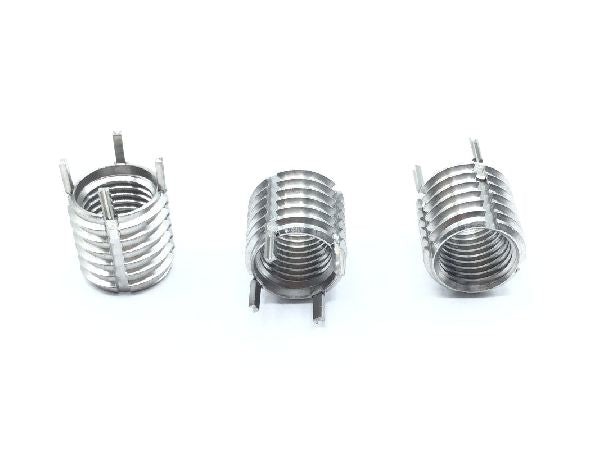

MS51830-205 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51830-205 Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

2a

Thread Size

0.437 inches

Features: Individually keyed
Features Provided: Individually keyed
Full Internal Thread Length: 0.492 inches
Insert Size: 0.562-12 unc (coarse thread) 2a
Internal Thread Relief Depth: 0.070 inches
Length: 0.562 inches
Material Specification: Mil-s-7720 military specification single material response
Style Designator: Keylock
Thread Direction: Right-hand
Thread Length: 0.5600 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
