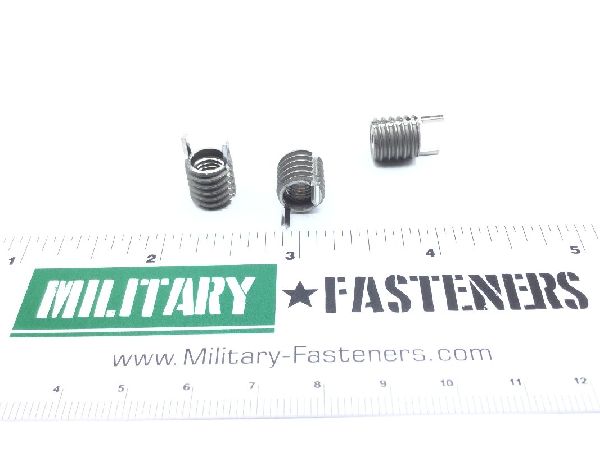

MS51830CA202 Screw Thread Insert

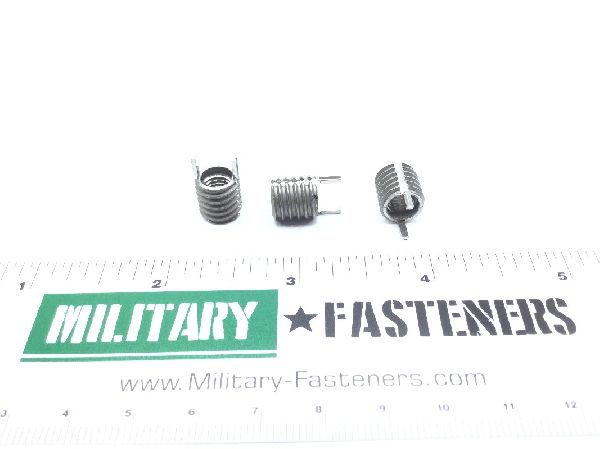

MS51830CA202 Screw Thread Insert (2)

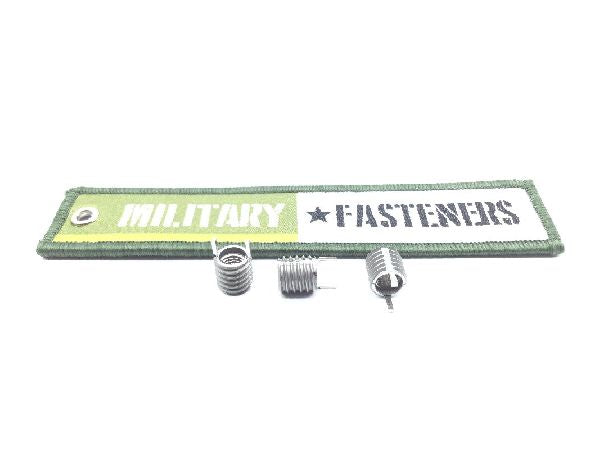

MS51830CA202 Screw Thread Insert (3)

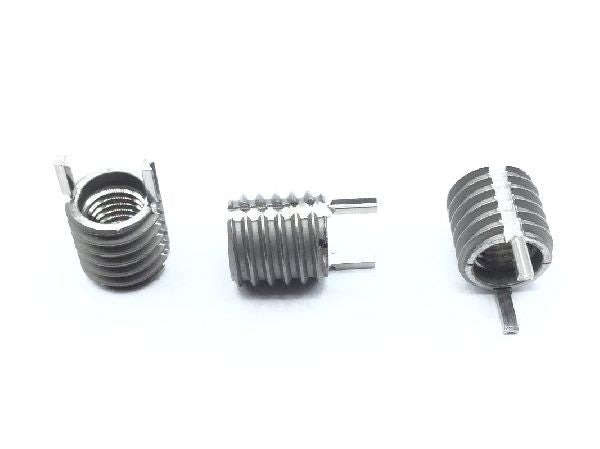

MS51830CA202 Screw Thread Insert (4)

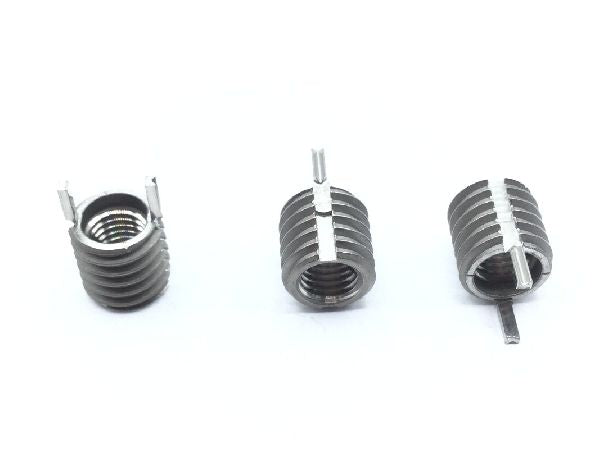

MS51830CA202 Screw Thread Insert (5)

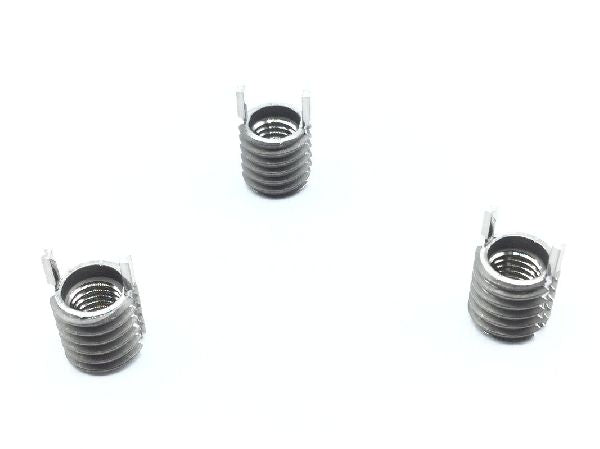

MS51830CA202 Screw Thread Insert (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS51830CA202 Screw Thread Insert

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $22.00

Units per Pack 2

Price per Pack $44.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $44.00

Add item to quote

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3b

Thread Size

0.25 inches

Full Internal Thread Length: Between 0.295 inches and 0.315 inches
Insert Size: 0.375-16 unc
Internal Thread Relief Depth: Between 0.06 inches and 0.08 inches
Length: 0.375 inches
Material Specification: Ams 5737 assn standard single material response
Style Designator: Keylock
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
